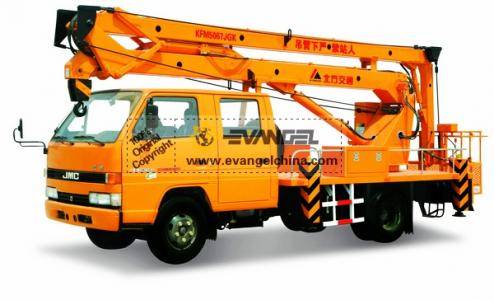

KaiFan Brand 16M Articulated Boom (JMC) Aerial Working Platform Technical Parameters
（KFM5067JGK –GKZ-16J）
Working Condition
1 Altitude: 0-1000m
2、Temperature: -25℃--+45℃, environmental relative humidity ≤90%
3、Allowed working condition: solid, stable land, the vehicle should be horizontal
4、Wind force: ≤6 degree (wind speed ≤12.5m/s)
Working Range
KFM5067JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
Main Parameters
|
Bulletin No. |
KFM5067JGK |
|
|
Type |
GKZ-16J |
|
|
External dimensions（mm） |
7200×1965×2955 |
|
|
Structure type |
Three-section articulated boom |
|
|
Working Cage |
Internal Size（mm） |
1100×600×1100 |
|
Rated loading（kg） |
200 (or 2 persons ) |
|
|
Max. Working height（mm） |
16000 |
|
|
Max. Height from ground（mm） |
14300 |
|
|
Max. Working radius（mm） |
8000 |
|
|
Working radius when doing the highest height（mm） |
2700 |
|
|
Working Boom |
Max. Raising angle of lower boom（º） |
70 |
|
Max. Raising angle of upper boom（º） |
70 |
|
|
Max. Raising angle of jib（º） |
90 |
|
|
Boom rack rotation angle（º） |
360 |
|
|
Outrigger |
Vertical span（mm） |
3050 |
|
Horizontal span（mm） |
3600 |
|
|
Traveling of vertical outrigger（mm） |
450 |
|
|
Adjustment |
Single adjustable |
|
|
Lifting |
Rated lifting weight（kg） |
995 |
|
Rated lifting height（mm） |
8200 |
|
Chassis Introduction
|
Traveling Performance Parameters |
Chassis model |
JMC JX1060TSG23 |
|
Persons |
2+3 |
|
|
Axle base (mm) |
3360 |
|
|
Wheel base (front/rear)（mm） |
1385/1425 |
|
|
Driving mode |
4×2 |
|
|
Front suspension（mm） |
1015 |
|
|
Rear suspension（mm） |
1815 |
|
|
Approaching angle（º） |
27 |
|
|
Departure angle（º） |
18.5 |
|
|
Max. Grade ability（%） |
28 |
|
|
Min. Turning diameter（mm） |
13600 |
|
|
Min. Ground clearance（mm） |
190 |
|
|
Engine |
Engine model |
JX493ZLQ3 |
|
Rated power（kw/r/min） |
85/3600 |
|
|
Torque（N、m/r/min） |
285/2000 |
|
|
Max. Speed（km/h） |
70 |
|
|
Gas consumption per one hundred miles(diesel oil) （L） |
10 |
|
|
Specification of the tire |
7.00R16LT |
|
|
The whole weight（kg） |
5495 |
|
|
Max. Weight with whole loading（kg） |
5820 |
|
Equipments Introduction
1. JMC JX1060TSG23
2. Working boom assembly
3. Rotation structure assembly
4. Body transformation assembly
5. Extending outrigger
6. Spare type & tool box
7. Hydraulic system assembly
8. Electric system assembly
9. Safety control system
10. Working cage assembly
11. Safety belt
12. Safety lift & Moving guard bar
13. Balance slid rod device
14. Maintenance bag & tools
15. Safety warning & Light
16. Air- conditioning
17. Lifting device
Vehicle Information
1. Manual Instruction
2. Operation manual of chassis
3. Guarantee of chassis
4. Certification of quality of the vehicle
5. Maintenance Manual (Operation instruction)
6. Operating safety certification
