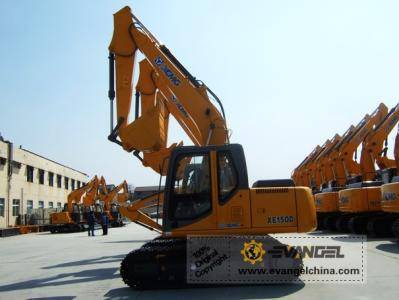

XE150D Excavator
Parameter:
|
Model |
XE150D |
||
|
Bucket capacity |
m3 |
0.6 |
|
|
Standard bucket width |
mm |
1,000 |
|
|
Operation weight |
kg |
14,400 |
|
|
Dimension (in transportation) |
Overall length |
mm |
7,801 |
|
Overall width |
mm |
2,590 |
|
|
Overall height |
mm |
2,850 |
|
|
Min. clearance |
mm |
478 |
|
|
Engine |
Model |
4BTAA3.9 |
|
|
Total displacement |
L |
3.927 |
|
|
Rated output power |
KW/rpm |
85.4/2200 |
|
|
Digging performance |
Max. digging height |
mm |
8,641 |
|
Max. dumping height |
mm |
6,181 |
|
|
Max. digging depth |
mm |
5,538 |
|
|
Max. vertical digging depth |
mm |
4,727 |
|
|
Max. digging radius |
mm |
8,296 |
|
|
Boom deflection angle |
° |
|
|
|
Min. slew radius |
mm |
2,325 |
|
|
Min. rear slew radius |
mm |
2,325 |
|
|
Bucket digging force |
kn |
85 |
|
|
Track type |
Steel |
||
|
Track width |
mm |
600 |
|
|
Travel system |
Track length |
mm |
3,660 |
|
Wheel base |
mm |
2,910 |
|
|
Track gauge |
mm |
1,990 |
|
|
Travel speed (Gear I/II) |
km/h |
5.21/3.16 |
|
|
Gradeability |
% |
70 |
|
|
Slew speed |
rpm |
12.3 |
|
|
Bulldozing plate |
Bulldozing plate width |
mm |
|
|
Bulldozing plate height |
mm |
|
|
|
Lifting distance |
mm |
|
|
|
Hydraulic pump type |
Variable pump×2 +gear pump×1 |
||
|
Slew motor type |
Piston hydraulic motor |
||
|
Travel motor type |
Piston hydraulic motor |
||
|
Fuel tank capacity |
L |
250 |
|
|
Hyraulic oil tank capacity |
L |
130 |
|
