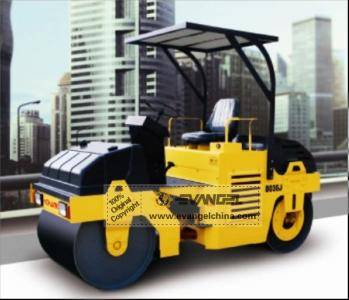

·          Overall Dimension

1

Length

3030mm

2

Width(to outside of wheels)

1300mm

3

Height(To the top of the cab)

2350mm

4

Wheel base

2100mm

5

Min. ground clearance

170mm

Main Technical Specification

1

Static line force(vibratory Drum)

162N/cm

2

Frequency

50HZ

3

Centrifugal-Force

29.6KN

4

Amplitude

0.58mm

5

Operating weight

3000kg

6

Static Weight at Drum

1650kg

7

Static Weight at rear drum

1350kg

8

Min. turning radius

4300mm

10

Drum diameter

800mm

11

Drum width

 1000mm

12

Traveling speed(Km/h)，2 forward &2 reverse

(1) 1st gear (F/R)

2

(2) 2nd gear (F/R)

5.6

13

Gradient capacity

20%

Diesel engine

1

Model

Changchai engineN385Q

2

Type

Vertical, in-line, liquid-cooled and four-stroke engine

3

Rated output

21 kW

4

Rated speed

2400(r/min)

5

Min. specific fuel consumption

Driving System

1

Type

Mechanical transmission and rear wheel drive

2

Transmission line

Engine-gearbox-chain-axle

Working Device Hydraulic System

1

Model of vibratory pump

2

System pressure

15mpa

3

Model of vibratory motor

Steering System

1

Type

Middle articulated frame. Full-hydraulic Steering

2

Model of steering pump

3

Model of redirector

4

System pressure

5

Dimension of steering cylinder

Brake System

1

Type of traveling brake

pedal control clamp brake

2

Type of parking brake

Hand brake

Flexible shaft control clamp brake

Oil Capacity

1

Fuel(diesel)

2

Engine lubricating oil

3

Oil for hydraulic system
