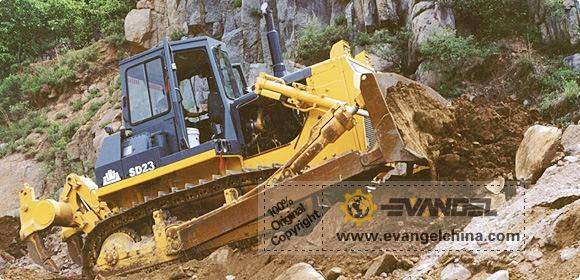

SD23 Bulldozer
Engine model: Cummins NT855-C280S10
Rated power : 169 kW(230HP)
Operating weight: 24.6 t
|
Blade Type |
Straight-tilt |
Angle |
U-type |
|
Min.ground clearance(mm) |
405 |
405 |
405 |
|
Ground pressure(MPa) |
0.078 |
0.078 |
0.078 |
|
Min.turning radius(m) |
3.3 |
3.3 |
3.3 |
|
Gradeability(°) |
30 |
30 |
30 |
|
Track gauge(mm) |
2000 |
2000 |
2000 |
|
Dozing capacity(m3) |
7.8 |
5.4 |
8.4 |
|
Blade width(mm) |
3725 |
4365 |
3860 |
|
Blade height(mm) |
1395 |
1107 |
1379 |
|
Max.drop below ground (mm) |
540 |
560 |
540 |
|
Max.tilt adjustment(mm) |
1210 |
1240 |
1210 |
|
Blade Weight(kg) |
2900 |
3372 |
3350 |
