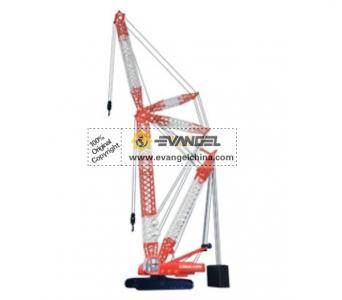

QUY160 Crawler Crane

QUY160 Crawler Crane

Features

1. Outstanding lifting capacity: leading the trade and exceeding your imagination!

2. The control system applied to this type of crane is an electronic management system, which adopts CAN bus technology, has intelligent fault diagnosis function and is equipped with intelligent color display.

3. The pendant plate made of high-strength plate, which has taken the place of traditional wire rope, has the advantages of excellent rigidity, light weight, great load-bearing capacity and low wind drag etc.

4. The crane is equipped with a self-assembly/dismantling system. No auxiliary crane is required for loading, unloading, assembly and dismantling.

5. The manufacturing capability and manufacturing level of structural member is in the leading position in the same trade; all the welding seams of boom frame have been given 100% ultrasonic inspection.

6. The operator’s cab can tilt forward and backward 20° automatically.

7. The crane is equipped with Cummins electronic diesel injection engine which has CAN-bus interface and strong rated output power.

8. The closed slewing mechanism has controllable free swing function which can reduce the impacts on the crane and ensure that superstructure starts/stops slewing more stably. The external slewing ring and slewing reducer with great load-bearing capacity and high precision can ensure stable and precise slewing motion.

9. The traveling mechanism can make the crane have high maneuverability and perform such motions as traveling in straight line, one-side crawler steering, differential steering and turning on the spot as well as traveling with load.

10. The crane has many varied configuration options: main boom, main boom with fixed jib, and main boom with luffing jib. Therefore it can satisfy various construction requirements.

Parameter

Item

Value

Remarks

Max. lifting capacity × Radiust × m

160×5

Deadweight with basic boomt

160t

Main boom lengthm

20~83

Fixed jib lengthm

13~31

Max. lifting capacity of fixed jibt

22

Offset angle of fixed jib°

10,30

Max. length of main boom with fixed jibm

71＋31

Luffing jib lengthm

27~51

Max. lifting capacity of luffing jibt

38

Main boom angle under luffing jib working condition°

85, 75, 65

Max. length of main boom with luffing jib m

56＋51

Max. speed of single rope on drum

Main winchm/min

110

The 6^th rope layer

Auxiliary winchm/min

110

The 6^th rope layer

Derricking winchm/min

30

The 5^th rope layer

Slewing speedrpm

2.2

Traveling speed km/h

1.2

Gradeability％

30％

Ground pressure MPa

0.1

Overall dimensions (L×W×H)m

10.3×6.9×3.75

Without mast and boom frame

Engine

Rated power/ rotational speed

kW/rpm

224/2100

Max. output torque/ rotational speedNm/rpm

1458/1200～1400

Emission standard

EU Stage 3

Crawler gauge × ground contact length × track shoe widthmm

5800×7465×1100

Lifting Capacity Table of Main Boom

Boom length (m) Working radius (m)	20	23	26	29	32	35	38	41	44	47	50	Boom length (m) Working radius (m)
5	160											5
6	142	140	130									6
7	123.8	123	115	110	105							7
8	105	102.5	99	95	92	90	85					8
9	90	88	85	84	83	80	77.2	72				9
10	80	76.5	75	73	72	71.6	70	66	63	62		10
12	62	59.5	59.5	59.2	58	57.4	57.2	55	53.5	53	51	12
14	50	48	50	50	49	49	48.8	46.7	45	45	44	14
16	42	42	42	41.5	41.2	41	40.6	40	38.5	37.8	37.5	16
18		36	36	36	35.2	35	35	34.4	34	33	32.5	18
20		31	31	31	30.6	30.5	30.5	30.5	30.2	29	29	20
22			28	27	27	27	26.8	27	26.6	26	26	22
24			24.5	24.2	24	23.8	23.8	23.8	23.6	23.5	23.4	24
26				22	21.6	21.5	21.5	21.5	21.2	21	21	26
28					20	20	19.3	19.2	19.2	19	19	28
30						18	17.5	17.5	17.5	17.2	17	30
32						16	16	16	16	15.7	15.6	32
34							14.8	14.5	14.5	14.2	14.2	34
36								13.5	13.3	13.2	13.1	36
38									12.2	12.1	12	38
40										11.2	11	40
42											10.5	42
44											9.8	44

Boom length (m)

Radius (m)

53

56

59

62

65

68

71

74

77

80

83

Boom length (m)

Radius (m)

12

49

48

47

12

14

43

42

40.8

40

38

36.5

33

14

16

36.8

36.2

35.5

35.5

34

33.5

31.7

30.5

28

24.6

22

16

18

32

31.8

31.5

31.4

31.3

31.1

29.4

28

26.2

23.5

21

18

20

28.5

28

27.5

27.2

27.1

27

26.5

25.5

24.5

22

20

20

22

25

25

24.6

24.2

23.8

23.5

23.3

23.1

22.7

21

19

22

24

23

22.6

22

21.8

21

20.8

20.6

20.5

20.2

20

18

24

26

20.6

20.5

20

19.8

19

19

18.6

18.2

17.8

17.8

17

26

28

18.8

18.6

18.2

18.1

17.3

17.3

16.8

16.6

16

15.8

15.6

28

30

17

16.8

16.5

16.5

16

15.8

15.2

15.2

14.5

14.3

14.2

30

32

15.5

15.3

15

15

14.8

14.5

14

13.9

13.6

13.2

12.5

32

34

14

13.9

13.8

13.8

13.5

13.5

12.8

12.8

12.6

12.1

11.5

34

36

13

12.8

12.6

12.5

12.2

12.2

11.8

11.8

11.2

11.1

10.8

36

38

11.9

11.8

11.6

11.5

11.2

11.1

10.9

10.9

10.2

10.1

9.8

38

40

11

10.8

10.5

10.5

10.2

10.2

10

10

9.5

9.3

9.0

40

42

10.2

10

9.8

9.7

9.5

9.4

9.1

9.1

8.7

8.6

8.2

42

44

9.5

9.3

9.1

9.0

8.6

8.5

8.3

8.2

8.0

7.5

7.3

44

46

8.6

8.5

8.3

8.3

8.0

8.0

7.7

7.2

7.2

7.0

6.8

46

48

8

7.6

7.6

7.3

7.3

7.0

7.0

6.7

6.3

6.2

48

50

7

7

6.8

6.8

6.5

6.0

6.0

5.8

5.8

50

55

6.1

6.1

6.0

5.6

5.4

5.2

5.0

4.8

4.6

55

60

5.2

4.9

4.7

4.2

4.2

3.9

3.8

3.4

60

65

3.8

3.5

3.3

3.1

3.0

2.7

65

70

2.6

2.4

2.2

2.1

70
