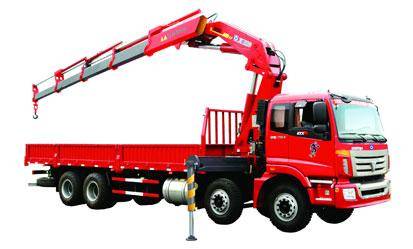

SQ16ZK4Q Truck-Mounted Crane
Parameter
|
Max Lifting Moment |
40 |
t.m |
|
Max Lifting Capacity |
16000 |
kg |
|
Recommend Power Needed At Recommend Oil Flow |
37 |
kw |
|
Max Oil Flow of Hydraulic System |
63 |
L/min |
|
Rated Pressure Of Hydraulic System |
31.5 |
MPa |
|
Oil Tank Capacity |
250 |
L |
|
Rotation Angle |
(360°) All Rotation |
|
|
Crane Weight |
5000 |
kg |
|
Installation Space |
1500 |
mm |
|
Choice of Chassis |
NXG1310D3ZEX徐工；BJ1317VNPJJ-S5北汽福田；DFL1311A3东风 ； |
|
|
Working radius(m) |
2.5 |
4.098 |
5.898 |
7.748 |
9.618 |
11.518 |
|
Lifting capacity(kg) |
16000 |
9600 |
6600 |
4850 |
3500 |
2600 |
