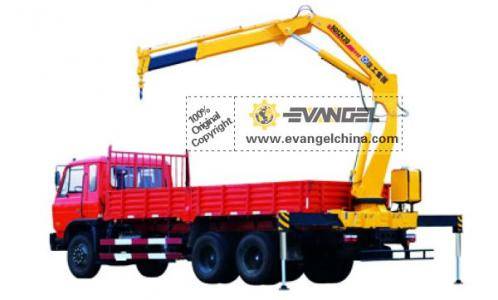

SQ5ZK2Q/SQ5ZK3Q Truck-Mounted Crane
Parameter
|
Max Lifting Moment |
10.5 |
10.5 |
t.m |
|
Max Lifting Capacity |
5000 |
5000 |
kg |
|
Recommend Power Needed At Recommend Oil Flow |
18 |
18 |
kw |
|
Max Oil Flow of Hydraulic System |
25 |
25 |
L/min |
|
Rated Pressure Of Hydraulic System |
28 |
28 |
MPa |
|
Oil Tank Capacity |
90 |
90 |
L |
|
Rotation Angle |
(360°)All Rotation |
(360°)All Rotation |
。 |
|
Crane Weight |
2011 |
2117 |
kg |
|
Installation Space |
1050 |
1050 |
mm |
|
Choice of Chassis |
CA1140PK2L3EA80 青岛解放 ； DFL1140B东风； EQ1126KJ1东风； HFC1132KR1K3江淮； LZ1120LAPT东风柳汽； EQ1141NBJ2东风； EQ5121GFJ东风； EQ5201GFJ6东风； HN1310P29D6M3J 华凌； NXG1160D3ZAL1X徐工； |
||
| Working radius (m) | 2.1 | 4.44 | 6.2 | 8.01 |
| Lifting capacity (kg) | 5000 | 2400 | 1600 | 1050 |
|
Working radius (m) |
2.1 |
4.54 |
6.3 |
8.11 |
9.92 |
|
Lifting capacity (kg) |
5000 |
2400 |
1600 |
1050 |
700 |
