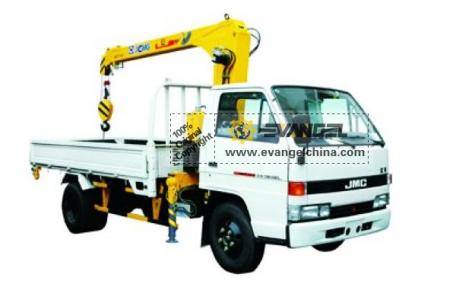

SQ2SK1Q/K2Q Truck-Mounted Crane
Parameter
|
Model |
SQ2SK1Q/SQ2SK2Q |
Unit |
|
Max Lifting Capacity |
2100 |
kg |
|
Max Lifting Moment |
4.2 |
T.M |
|
Recommend Power |
9 |
kw |
|
Max Oil Flow of Hydraulic System |
20 |
L/min |
|
Max Pressure of Hydraulic System |
16 |
MPa |
|
Oil Tank Capacity |
25 |
L |
|
Rotation Angle |
All Rotation |
|
|
Crane Weight |
1172/758/1316 |
kg |
|
Installation Space |
850 |
mm |
|
Choice of Chassis |
EQ1092FJ1东风；EQ1092FJ东风；NKR77PLLWCJAY 庆铃；EQ1060GJ20D3东风；JX1060TSG23江铃；JX1050TGB23江铃；HFC1065KRT江淮 |
|
| SQ2SK1Q Lifting capability diagram | ||||||||
|
|
SQ2SK2Q Lifting capability diagram |
||||||||||
|
