HBTS80X16 Trailer-mounted Concrete Pump-Product-Trailer-Mounted Concrete Pump-XCMG-EVANGEL - Global Construction Machinery Solutions

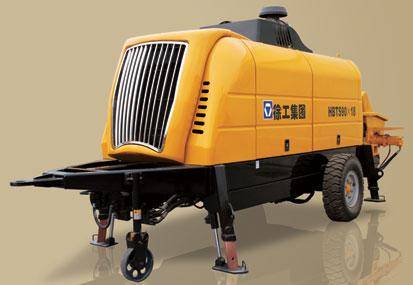

HBTS80X16 Trailer-mounted Concrete Pump


Item

Unit



Model





HBTS80X16

Displacement

Low pressure

m3/h

83

High pressure

m3/h

49

transmission pressure

Low pressure

MPa

9

High pressure

MPa

16

S valve change number

Low pressure

cycle/min.

23

High pressure

cycle/min.

13

Transport cylinder inner diameter × stroke

mm

φ200×1800

Main cylinder inner diameter × stroke

mm

φ140×1800

Valve form



S Valve

Hopper volume

m3

0.65

Products outlet
diameter

mm

φ180

Maximum allow aggregate diameter

mm

40

Engine

Model



SC8D220G2

Engine power

kW/r/min

162/2200

Hydraulic system

Main system form



Open style

Main pump

ml/r

190

oil tank capacity

L

600

Dimension

L

mm

6960

W

mm

2100

H

mm

2800

Switch form of high and low pressure

AUTO

Water tank capacity

L

100

Oil tank capacity

  L

210
