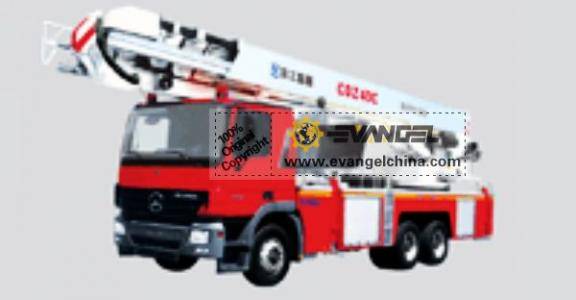

CDZ40C Aerial Platform Fire Truck
CDZ40C Aerial Platform Fire Truck is a multi-functional vehicle of electro-hydraulic proportional control, 360º full swing with combined telescopic boom plus folding jib and a rescue ladder. The superstructure is mounted on a “Benz” chassis. The working cage is articulated at the end of the jib. Stainless steel water pipeline and rescue ladder made of aluminum alloy are fixed along the right side of the telescopic boom. Hydraulic oil pipeline and cables enclosed by chain plates lying along the left side of the telescopic boom are for operating the vehicle both on the working cage and on the turntable. The electro-hydraulic proportional control is applied in the vehicle. Safety devices are well equipped. Advanced performance, smooth movements, fine inching control, safe operations are available.
Parameter
|
1、Main Technical Data in Travel Configuration |
||||
|
Category |
Item |
Unit |
Parameter |
|
|
Dimension |
Overall length |
mm |
12150 |
|
|
Overall height |
mm |
3995 |
||
|
Overall width |
mm |
2500 |
||
|
Wheel space |
1st, 2nd axle |
mm |
4500 |
|
|
2nd, 3rd axle |
mm |
1350 |
||
|
Track |
Front axle |
mm |
2035 |
|
|
Mid/Rear axle |
mm |
1804 |
||
|
Weight |
Gross weight |
kg |
28500 |
|
|
Axle load |
Front axle |
kg |
6650 |
|
|
Mid/Rear axle |
kg |
21850 |
||
|
Travel parameter |
Chassis |
Benz 3331 |
||
|
Engine model |
MB OM501LA |
|||
|
Power |
kW/(r/min) |
230/1800 |
||
|
Torque |
N·m/(r/min) |
1530/1080 |
||
|
Max. travel speed |
km/h |
≥85 |
||
|
Min. turning diameter |
m |
≤19 |
||
|
Approach angle |
° |
≥16 |
||
|
Departure angle |
° |
≥8 |
||
|
Braking distance(atspeed 30km/h ) |
m |
≤10 |
||
|
Min. ground clearance |
mm |
248 |
||
|
Max. grade-ability |
% |
≥28 |
||
|
2、Main Technical Data for Operation |
||||
|
Category |
Item |
Unit |
Parameter |
|
|
Main performance |
Rated working height |
m |
40 |
|
|
Rated load on the platform |
kg |
400 |
||
|
Max. rated working radius |
m |
18 |
||
|
Telescopic boom length |
m |
11.5～34 |
||
|
Folding jib length |
m |
5 |
||
