model |
|
|

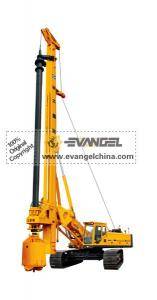

XR200 |
||
|
Engine |
Model |
|
CUMMINS M11-C330 |
||
|
|
Rated Power |
KW/rpm |
246/2100 |
||
|
Rotary Dvive |
Max. output torque |
kN·m |
200 |
||
|
|
Rotary speed |
r/min |
7～22 |
||
|
Max. Drilling Diameter |
With casing |
mm |
Ф1500 |
||
|
|
Without casing |
mm |
Ф2000 |
||
|
Max. Drilling Depth |
m |
60,48 |
|||
|
Pull-Down Cylinder |
Max. pull-down piston push |
KN |
180 |
||
|
|
Max. pull-down piston pull |
KN |
180 |
||
|
|
Max. pull-down piston stroke |
m |
5.0 |
||
|
Main Winch |
Max. pulling force |
KN |
180 |
||
|
|
Max. pulling speed |
m/min |
≥65 |
||
|
Auxiliary Winch |
Max. pulling force |
KN |
80 |
||
|
|
Max. pulling speed |
m/min |
≥60 |
||
|
Mast Rake |
Side/forwards/backwards |
|
±8°/5°/15° |
||
|
Undercarrige |
Max. traveling speed |
KM/h |
1.5 |
||
|
|
Max. grade ability |
% |
40 |
||
|
|
Min. Clearance |
mm |
468 |
||
|
|
Track shoe width |
mm |
800 |
||
|
|
Distance between tracks |
mm |
3500～4400 |
||
|
Hydraulic Systerm |
Working pressue |
Mpa |
30 |
||
|
Overall Drilling Weight |
t |
68 |
|||
|
Dimension |
Working condition |
mm |
10200×4400×20850 |
||
|
|
Transportation condition |
mm |
15700×3500×3350 |
||
