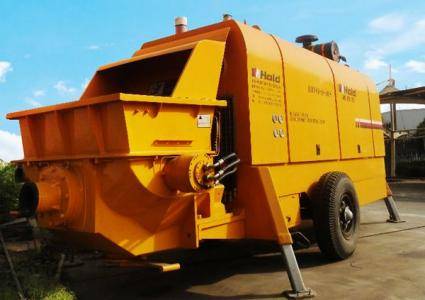

ENGINE
Emission Stage Tier I
Manufacturer SDEC
Engine Power 158 KW
Max . Torque / Speed 740-1000/2200(N.m/rpm)
Piston Displacement 10.5L
Number of Cylinders 6
Fuel Consumption 228 (g / kW · h)
Aspiration Turbocharged
HYDRAULIC SYSTEM
Hydraulic system type Open loop
System working pressure 32 MPa
Main Hydraulic Pump Rexroth
Main hydraulic pump Type A11VLO190
Main Hydraulic pump displacement 190 ml/r
Main hydraulic directional valve Vickers
Oil suction&return filter SOFIMA
Multi-way valve ARON
Check valve Shanghai LiXin DBW30A-2-50/35
Pressure relief valve Shanghai LiXin
Hydraulic seals PARKER
Hydraulic hose MANULI
Hydraulic accumulator Shanghai LiXin NXQA-10/31.5-L
Water pump BLACK CAT
ELECTRICAL CONTROL SYSTEM
Power Supply Apollo 12V 165AH×2
Control Module Siemens 6ES7214-1AD23-OXB8
Working Voltage DC 24V
Relay OMRON
Proximity Switch BEDOOK
Wire Remote Controller HANYOUNG
DIMENSIONS&WEIGHT
Machine Length 6400mm
Machine Width 2200mm
Machine Height 2650mm
Machine Net Weight 6180Kg
PUMPING SYSTEM
Max. Concrete Output 85/50 m³/h
Max. Concrete Pressure 9.2/15.6 MPa
Max. Concrete Pumping Height 220 m
Max. Horizontal Pumping Distance 900 m
Hydraulic Strokes 25/15time/min
High And Low Pressure Exchanger Available
Hydraulic Cylinder Bore/Stroke 140/2006(mm)
Concrete Cylinder Bore/Stroke Φ200*1800 mm
Hopper Charge Height ≤1450 mm
Concrete Hopper Capacity 0.7 m³
Concrete Slump 80~230mm
