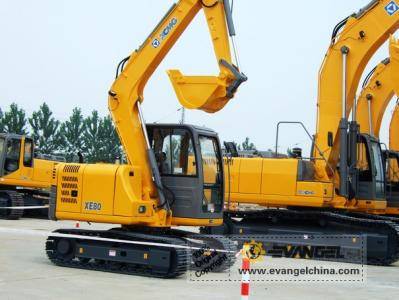

XE80 Excavator
Parameter:
|
Model |
XE80 |
||
|
Bucket capacity |
m3 |
0.34 |
|
|
Standard bucket width |
mm |
722 |
|
|
Operation weight |
kg |
7,425 |
|
|
Dimension(in transportation) |
Overall length |
mm |
6,155 |
|
Overall width |
mm |
2,220 |
|
|
Overall height |
mm |
2,618 |
|
|
Min. clearance |
mm |
392 |
|
|
Engine |
Model |
CumminisB3.3 |
|
|
Total displacement |
L |
3.3 |
|
|
Rated output power |
KW/rpm |
60/2200 |
|
|
Digging performance |
Max. digging height |
mm |
7,167 |
|
Max. dumping height |
mm |
5,100 |
|
|
Max. digging depth |
mm |
4,140 |
|
|
Max. vertical digging depth |
mm |
3,218 |
|
|
Max. digging radius |
mm |
6,375 |
|
|
Boom deflection angle |
° |
|
|
|
Min. slew radius |
mm |
1,815 |
|
|
Min. rear slew radius |
mm |
1,770 |
|
|
Bucket digging force |
kn |
53.6 |
|
|
Track type |
Steel |
||
|
Track width |
mm |
450 |
|
|
Travel System |
Track length |
mm |
2,752 |
|
Wheel base |
mm |
2,119 |
|
|
Track gauge |
mm |
1,700 |
|
|
Travel speed (Gear I/II) |
km/h |
4.2/2.7 |
|
|
Gradeability |
% |
70 |
|
|
Slew speed |
rpm |
12 |
|
|
Bulldozing plate |
Bulldozing plate width |
mm |
|
|
Bulldozing plate height |
mm |
|
|
|
Lifting distance |
mm |
|
|
|
Hydraulic pump type |
Variable pump×1 +gear pump×1 |
||
|
Slew motor type |
Piston hydraulic motor |
||
|
Travel motor type |
Piston hydraulic motor |
||
|
Fuel tank capacity |
L |
135 |
|
|
Hydraulic oil tank capacity |
L |
130 |
|
