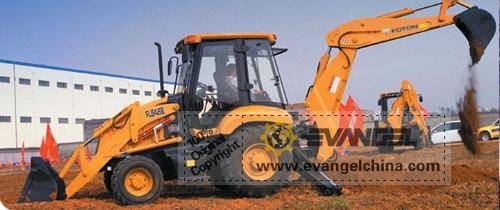

FLB468 Backhoe Loader
Technical features of FLB468A
1.Lovol engine (Perkins as optional), large power reserve, long operating life, FASTRAM can quickly start to save fuel;
2.Originally Italian CARRARO transmission and axles;
3. Adopted HUSCO hydraulic components to ensure the reliability of the system and the accuracy of movement;
4.360-degree panoramic cab with broad vision.
|
Parameter Items |
Parameter Value |
|
1.The main parameters |
|
|
(1)Backhoe type |
Sideshift |
|
(2)Transport dimensions (L × W × H) mm |
|
|
Longitudinal digging device(L × W × H) |
7500×2320×3510 |
|
Transverse digging device(L × W × H) |
5815×2550×3510 |
|
(3)Operating Weight (kg) |
|
|
2-drving |
8160 |
|
4-drving |
8300 |
|
(5)Shifts speed |
|
|
Forward 1/2/3/4 |
5.6/9.5/20.1/36 |
|
Backward 1/2/3/4 |
5.6/9.5/20.1/37 |
|
(6)Minimum turning radius (mm) |
|
|
Front wheel outside |
4127 |
|
(7)Loading parameters |
|
|
Rated bucket capacity (m3) |
1 |
|
Maximum rising force(kN) |
41 |
|
Maximum unloading height (mm) |
2675 |
|
Maximum unloading distance(mm) |
730 |
|
Total Cycle Time(s) |
8.4 |
|
(8)Digging parameters |
|
|
Rated bucket capacity (m3) |
0.18 |
|
Maximum digging force (kN) |
58 |
|
Maximum digging depth(mm) |
4230 |
|
Maximum digging distance (mm) |
5310 |
|
Maximum unloading height (mm) |
3400 |
|
2.Engine |
|
|
Model |
Lovol engine1004-4T /(UK Perkins 1104D-44T） |
|
Type |
4-cylinder ,turbocharged |
|
Power |
69 kW/2200rpm/（70 kW/2200rpm） |
|
Maximum torque |
≥370N.m/1400-1600r/min/（392N.m/1400r/min) |
|
Cylinder diameter × stroke (mm) |
100×127 |
|
Displacement (L) |
3.99 |
|
Fuel consumption (g / kW.h) |
220 |
|
3.Gearbox |
|
|
Model |
CARRARO:CA149524S |
|
4.Driving axle |
|
|
Front axle |
CARRARO(2-driving）：CA148394S CARRARO（4-driving）：CA147683S |
|
Rear Axle |
CARRARO：CA147103S |
|
5.Braking System |
|
|
Braking in operation System Type |
Gas-oil wet braking |
|
Parking / Emergency Brake System Type |
Power braking with hand operation |
|
6.Oil Tank capacity |
|
|
Fuel tank(L) |
180 |
|
7.Tire |
|
|
Front axle tire model |
14-17.5-14PR/11L-16-12PR(2-driving) |
|
Rear axle tire model |
19.5L-24-12PR |
|
8.Maximum Traction force(kN) |
58 |
