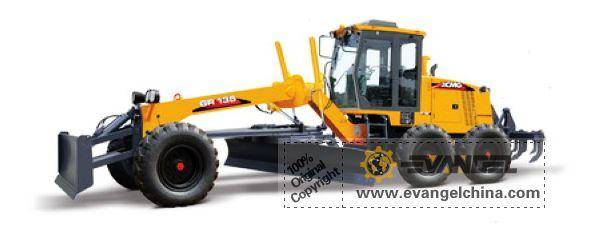

GR135 Motor Grader

                                                                                                                  GR135 Motor Grader

Basic specification

Engine model 6BT5.9
Rated power/speed 100/2200kw/rpm
Dimension(LxWxH) 8015×2380×3050mm
Operating weight(Standard) 11000kg

Performance specification

Travelling speed ,forward 5、8、13、20、30、42km/h
Travelling speed ,reverse 5、13、30km/h
Tractive force(f=0.75) 61.3KN
Max. gradeability 20%
Tire inflation pressure 300kPa
Working hydraulic pressure 16MPa
Transmission pressure 1.3~1.8MPa

Operating specification

Max. steering angle of front wheels ±49°
Max. lean angle of front wheels ±17°
Max. oscillation angle of front axle ±15°
Max. oscillation angle of balance box 16
Frame articulation angle ±27°
Min. turning radius using articulation 6.6m

Biade

Maximum lift above ground 410mm
Maximum depth of cutting 535mm
Maximum blade position angle 90°
Blade cutting angle 28°—70°
Circle reversing rotation 360°
Moldboard width X height 3710×610mm



                 All technical parameters are subject to change without prior notice because of technical improvements.
