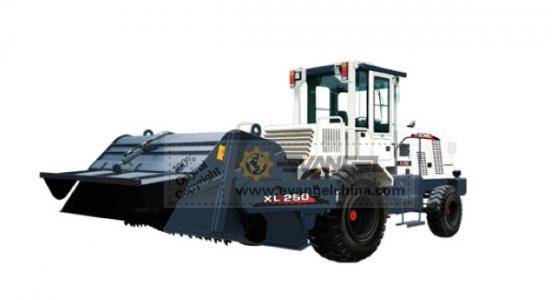

XL250 Soil Stabilizer

XL250 Soil Stabilizer


XL Series Soil Stabilizers are used for highways, roads, square, port, parking lot to mix stabilized soil site work ofbase and sub-base layer ,low-grade road construction available. They can mix I / II grade soil and stabilized material, aggregate size less than 40mm are allowed to add into mixture .III/IV grade soil available. The XL Series Soil Stabilizers have the advantages of advanced performance, high efficiency and comfortable operation .Many key components adopt international famous products to guarantee the quality. They are the ideal machines for modern construction.
XL Series Soil Stabilizer Performance and characteristic
⊙The engines belong to the N-series engines of the CUMMISNS company, which have the characteristics of dense structure, small noise, easy maintenance, low waste gas exhaust, etc. The power storage of the whole machine is large and the reliability is higher.
⊙The hydraulic system adopts the serial-pump scheme. The international famous imported parts are selected for the main elements which have the advantages of high allowable pressure, high efficiency, low noise, full functions, etc. The pump is integrated with the elements such as the pressure restriction valve, high pressure safety valve, bypass-valve, etc., and makes the structure of the hydraulic structure have simple structure and convenient installation and maintenance.
⊙The structure of the working device shall be optimized and designed, the working resistance shall be reduced and the working efficiency shall be improved;
⊙The driving axle produced by Meritor Axle Co., Ltd. with Sino-American joint venture, which has advanced design sound structure and reliable manufacture quality.
⊙Grand cab, as well as the Korean green glass is adopted, with wider eyeshot, The integrated rubber sealing pad is adopted for the bottom slab of the cab, which has good sealing performance. The noise around the ears of the driver is low and a top-built air-conditioning is prepared.
⊙The injection manipulation table, instrument plate and control box are adopted, which are large and grand. Furthermore, the acoustics, etc. are deployed. The positions of the manipulation rods are respectively at two sides of the seat, which are easy to be closed to and have comfortable operation.
⊙The anti-turning device is provided.


Model
Unit
XL250
Mixed width/Mixing and milling width
mm
2500
Max.mixed depth
mm
400
Engine Power
kW
310
Rotator speed
r/min
0-160
Group clearance
mm
460
Min.turning radius
m
7.1
Gradeability
≥20%(11,3°)
Fuel tank volume
L
400
Traveling speed
km/h
0-24.5
Operating speed
km/h
0-3
Overall mass
kg
16200
Overall dimension (L×W×H)
mm
8748×3036×3522


All technical parameters are subject to change without prior notice because of technical improvements.
