- The product performance improves greatly compared with the same class machine; the drilling depth of the standard
configuration can reach 67.5m.
- Adopt single rope main winch, effectively solving the wear problem of the steel wire rope. The diameter of the steel wire
rope is 30mm, greatly improving the breaking force and service life, saving the rope, and improving the safety.
- Adopt Weichai EFI engine and automatic idling and extreme power control, which can save the fuel, facilitate the maintenance,
reduce the expense, and meet the domestic and international requirements of the exhaust emission.
- Install the infrared camera to observe the service condition of the main winch in the cab day and night.
- Adopt the excavator cab which has beautiful appearance and better comfortableness during operation.
- Many configurations can be installed according to the customers’ requirements (such as landing leg cylinder, automatic slew).
|

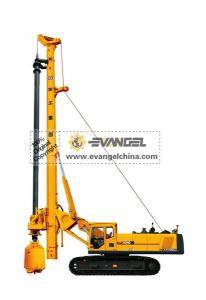

Model |
|
|
XRS680 |
|
|
Engine |
Model |
|
WP10.290 |
|
|
Rated power |
KW |
213 |
||
|
Drill unit |
Max. output torque |
kN·m |
200 |
|
|
Rotary speed |
r/min |
7～26 |
||
|
Max. drilling diameter |
mm |
Φ2000 |
||
|
Max. drilling depth |
m |
Standard configuration67.5(friction drag×5),optional configuration53(lock×4) |
||
|
Pressurized cylinder |
Max. pressure |
KN |
200 |
|
|
Max. hoisting power |
KN |
200 |
||
|
Max. stroke |
m |
5 |
||
|
Main winch |
Max. hoisting power |
KN |
190 |
|
|
Max. hoisting speed |
m/min |
65 |
||
|
Auxiliary winch |
Max. hoisting power |
KN |
80 |
|
|
Max. hoisting speed |
m/min |
60 |
||
|
Mast obliquity |
Sidewise/forwards/backwards |
|
±4°/5°/15° |
|
|
Chassis |
Max. travel speed |
KM/h |
1.5 |
|
|
Max. gradeability |
% |
35 |
||
|
Min. ground clearance |
mm |
468 |
||
|
Track shoe width |
mm |
800 |
||
|
Max. track width |
mm |
3500～4400 |
||
|
Hydraulic system |
Working pressure |
Mpa |
32 |
|
|
Overall operating weight |
t |
70 |
||
|
Dimension |
Working condition |
mm |
10260×4400×22120 |
|
|
Transportation condition |
mm |
16355×3500×3457 |
||
