Current Position: Products > Rotary Drilling Rig > XCMG

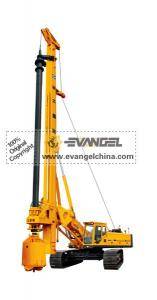

XG500 Rotary Drilling Rig

XG500

Wall depth

70m

Wall thickness

600-1500mm

Max. hoisting power

500KN

Max. hoisting/lowering speed

35m/min

Grab opening time

6sec

Grab closing time

7sec

Hydraulic system pressure

30Mpa

Engine

Model

CUMMINS QSM11-C400

Rated power

298/2100KW/rpm

Undercarrige

Max. traveling speed

1.5Km/h

Max. grade ability

40%

Min. ground clearance

425mm

Track shoe width

800mm

Track gauge

35004800mm

Dimension(length,width,height)

Working condition

10800x4800x18560mm

Transportation condition

13200x3500x3452mm

Overall Drilling weight(without grab)

65T
