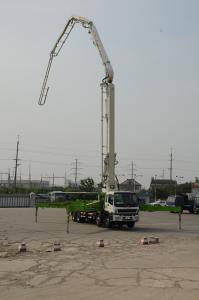

HDL5380/5381THB Concrete Pump

CHASSIS

Chassis Model                           CYH51Y

Emission Stage                            Euro III

Engine Power                             287 kw

Engine Displacement                    11.946 L

Driving Type                                 8*4

Wheelbase                     1850+4605+1310 mm

Max. Running Speed                     89 km/h

Min. Turning Radius                        11.9 m

Approach/Departure Angle           18.7/10.2°

Tyre Type                            295/80R22.5

BOOM SYSTEM

Max. vertical reach                       46.2 m

Max. horizontal reach                     42.2 m

Reach depth                             32.5 m

Unfolding height                          8.88 m

Boom control mode                  Manualwire and wireless remote control are all available

Boom type                                   RZ

Boom section articulation     90/180/180/180/265

                             90/180/180/180/240

Slewing range                             365°

Front Outriggers spread          10300/10200 mm

Rear Outrigger spread             9950/9980 mm

End hose length                             3 m

Arm attached pipeline diameter         125 mm

HYDRAULIC SYSTEM

Hydraulic System Type                 Close loop

System Working Pressure                  35 MPa

Main Hydraulic Pump                     Rexroth

Main Hydraulic Pump Type  A11VLO190/A4VG125+A4VG125

Main Hydraulic Pump Displacement   125+125ml/r

Main Hydraulic Directional Valve         VICKERS

Oil Suction&Return Filter                  SOFIMA

Multi-Way Valve                           HAVE

Pressure Relief Valve                         Lixin

Hydraulic Seals                           PARKER

Hydraulic Hose                           MANULI

Hydraulic Oil Tank Capacity                1200 L

Water Tank Capacity                       780 L

Water pump                         BLACK CAT

ELECTRICAL CONTROL SYSTEM

Power Supply               Apollo 12V 165AH×2

Control Module             Hirschman IFLEX C3-H

Working Voltage                        DC 24V

Relay                                  OMRON

Proximity Switch                        Bedook

Wireless Remote Controller                 HBC

DIMENSIONS&WEIGHT

Overall Length                   12550/12700 M

Overall Width                      2490/2490 M

Overall Height                     3980/3990 M

Overall Net Weight                    37900 KG

PUMPING SYSTEM

Concrete Valve                         S valve

Max. Concrete Output         135148/90 m3/h

Max. Concrete Pressure          8/(8/12.5) MPa

Hydraulic Strokes               26/(14/23) min-1

High And Low Pressure Exchanger      Available

Hydraulic Cylinder Bore/Stroke   Φ135*2100 mm

Concrete Cylinder Bore/Stroke      Φ230*2100/    Φ250*2200mm

Hopper Charge Height              ≤1500 mm

Concrete Hopper Capacity              0.7 m3

Concrete Slump                    120-230 mm
