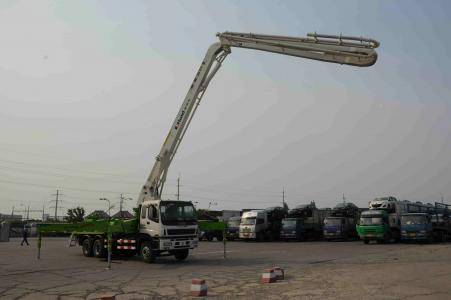

HDL5270THB Concrete Pump

CHASSIS

Chassis Model                         CYZ51Q

Emission Stage                           Euro III

Engine Power                           265 kw

Engine Displacement                   14.256 L

Driving Type                                6*4

Wheelbase                     4595+1310 mm

Max. Running Speed                   85 km/h

Min. Turning Radius                       8.8 m

Approach/Departure Angle         18.2/10.5°

Tyre Type                          295/80R22.5

BOOM SYSTEM

Max. vertical reach                      36.8 m

Max. horizontal reach                    32.8 m

Reach depth                            20.7 m

Unfolding height                         8.49 m

Boom control mode         Manualwire and wireless remote control are all available

Boom type                                   R

Boom section articulation       90/180/180/240

Slewing range                            365°

Front Outriggers spread               7142 mm

Rear Outrigger spread                 7667 mm

End hose length                            3 m

Arm attached pipeline diameter        125 mm

HYDRAULIC SYSTEM

Hydraulic System Type               Open loop

System Working Pressure                32 MPa

Main Hydraulic Pump                   Rexroth

Main Hydraulic Pump Type          A11VLO190

Main Hydraulic Pump Displacemen     190 ml/r

Main Hydraulic Directional Valve       VICKERS

Oil Suction&Return Filter                 SOFIMA

Multi-Way Valve                          HAVE

Pressure Relief Valve                       Lixin

Hydraulic Seals                         PARKER

Hydraulic Hose                         MANULI

Hydraulic Oil Tank Capacity              1100 L

Water Tank Capacity                      750 L

Water pump
