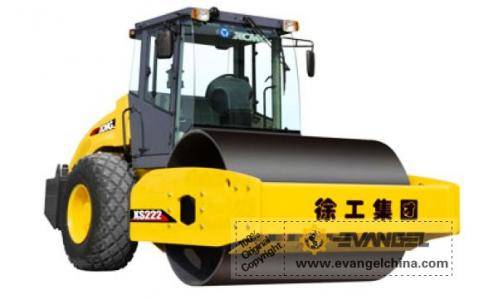

XS222 Hydraulic Single Drum Vibratory Road Roller

                                                            XS222 Hydraulic Single Drum Vibratory Road Roller

Feature



Comfortable driving

ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.



Unique structure

Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.



Easy operation

According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.

The failure diagnosis screen with alarms can avoid any unnecessary downtime.

The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.

XCMG is the first manufacturer to adopt the central engine for effortless maintenance.



Leading compacting performance

The unique hydraulic driving system design and heavy vibratory wheel weight make the XCMG’s roller highly advanced in compaction ability.

Heavy loaded drive axle and nonskid differential mechanism can furthest transfer the output power as well as the tractive force of engines.



Outstanding configuration

The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer’s needs.



Multiple functions

The split convex block drum (below 16t) and integral convex block drum (18-20t) can be selected according to the customer’s requirement.



Easy maintenance

The aural and visual alarm device can timely provide the maintenance message to avoid the machine faults and to shorten the down time.

The self-opening engine shield makes the engine and hydraulic pump easy to access to.


Parameter



Type Unit XS222
Operating weight kg 22000
Load on front drum kg 15000
Load on rear wheels kg 7000
Drum width mm 2130
Static linear load N/cm 704
Vibration frequency(Low/High) Hz 28/33
Nominal amplitude(High/Low) mm 1.86/0.93
Excitation force(High/Low) KN 390/270
Travel speed km/h 0~10
Steering angle ° ±33
Swing angle ° ±10
Theoretical gradeability % 50
Min. external turning radius mm 6500
Engine model   Cummins B5.9
Engine power kw 132
Rated engine speed r/min 2200
Engine oil consumption g/kW.h 232
Hydraulic oil tank capacity L 240
Fuel tank capacity L 240



          All technical parameters are subject to change without prior notice because of technical improvements.
