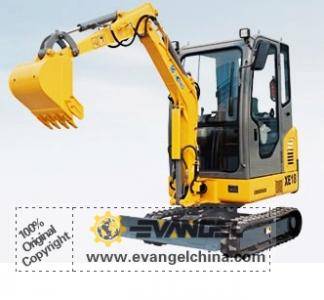

XE18 Excavator

XE18 Excavator



Parameter:



Model

XE18

Bucket capacity

m3

0.044

Standard bucket width

mm

475

Operation weight

kg

1780

Dimension(in transportation)

Overall length

mm

3760

Overall width

mm

1300

Overall height

mm

2405

Min. clearance

mm

180

Engine

Model

3TNV82A

Total displacement

L

1.33

Rated output power

KW/rpm

16.5/2200

Digging performance

Max. digging height

mm

3,653

Max. dumping height

mm

2,515

Max. digging depth

mm

2,285

Max. vertical digging depth

mm

2,067

Max. digging radius

mm

3,915

Boom deflection angle

  °

70/50°

Min. slew radius

mm

1674

Min. rear slew radius

mm

1190

Bucket digging force

kn

13.9

Track type

Rubber

Track width

mm

230

Travel System

Track length

mm

1578

Wheel base

mm

1217

Track gauge

mm

1070

Travel speed (Gear I/II)

km/h

4.4/2.4

Gradeability

%

58

Slew speed

rpm

11

Bulldozing plate

Bulldozing plate width

mm

1300

Bulldozing plate height

mm

235

Lifting distance

mm

236/204

Hydraulic pump type

Variable pump×2      +gear pump×1

Slew motor type

Piston hydraulic motor

Travel motor type

Piston hydraulic motor

Fuel tank capacity

L

20

Hydraulic oil tank capacity

L

29
