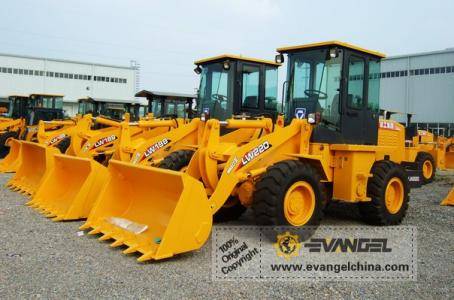

LW220 Mini Loader

LW220 Mini Loader



Features:



LW220 wheel loader is a new model developed by XCMG with the characteristic of high efficency, beauty and reliability.
The whole machine is reasonably designed.  Hydraulic mechanical transmission and four wheels driven make it have bigger breakout force and driven force. What is more, it is flexible and easy to handle. The turning radius is small, especially suitable for working in narrow sites.
The full hydraulic load sensing steering system and single–pump-valve-priority hydraulic working system make the whole machine energy saving.
The all around driver’s cab and openable hood provide comfortable working conditions and favorable maintenance conditions



Parameter:



Overall dimensions(L*W*H) mm  5520*1960*2850
 rated weight t  2
 Dumping clearance mm  2350/2700/3000
 Dumping reach mm  900
 Breakout fore KN  50
 Wheel base mm  2200
 Tread mm  1490
 Model  LR4108G75
 Rated power kw  64
 Rated speed r/min  2400
 Ist(F/R) km/h  6/6
 2nd(F/R) km/h  24/24
 Total cycling time s  <10
 Tyres  16/70-20
 Operating weight t  6
