Current Position: Products > Forklift > YTO

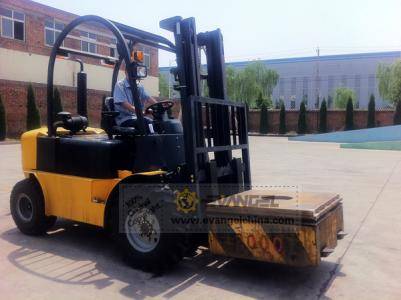

CPCD20/25 Rough Terrain Forklift (Off-Road)

YTO Rough Terrain Forklift (Off-Road Forklift) CPCD20/CPCD25


Speciality parameter

Model



CPCD20

CPCD25

Power type



Diesel

Diesel

Rated capacity

kg

2000

2500

Load center

mm

500

500

Lift height

mm

3300

3300

Mast tilt angle (forward/backward)

Deg

5/15

5/15

Front overhang

mm

550

550

Wheel-base

mm

1850

1850

Tread(front/rear)

mm

1250/1205

1250/1205

Performance parameter

Travel brake



Hydraulic-Foot pedal

Parking brake



Mechanical-Hand level

Lift speed(with/without load)

mm/s

400/520

400/520

Lower speed (with/without load)

mm/s

(laden)<600 ,without load)>300

Travel speed (with/without load)

km/h

18/23

18/23

Max. gradeability (laden)

%

20

17

Power, transmission and others

Engine

Model



A495BPG

A495BPG

Manufacturer



Xinchang

Xinchang

Rated power

kw

42/2650

42/2650

Max.rotation



174/1800

174/1800

Displacement



2.98

2.98

Battery

Voltage

V

12

12

Capacity

Ah

100

100

Gearbox

Transmission type



Hydraulic

Gears,speed (front/rear)



I/I

I/I

Tire

type



Pneumatic tyres

Model

Pront



11.5/80-15.3-14PR

Rear



27*10-12-12PR

Others

Dead.weight

kg

4500

4750

Free lift height

mm

120

120

Fork

Thickness*Width*Length

mm

40*125*1070

40*125*1070


Overall dimensions

Overall length(without forks)

mm

2845

2910

Overall width

mm

1480

1480

Overall height

Extended height(mast)

mm

4270

4270

Lower height(mast)

mm

2310

2310

Overhead guard

mm

2515

2515

Min. turning radius

mm

2900

2940

Min. under ground clearance

Under mast

mm

220

220

Center of wheel-base

mm

310

310



Optional engines:











Model

4TNE98









Manufacturer

YANMAR









Rated power KW

42.1/2300









Max.rotation Nm/Rpm

186/1700









Emission standard

EPA III







Descriptions:

1. A larger underground clearance of the chassis may overcome many kinds of complex terrain working.

2. Uses the integral-type combination instruments, the fuse box places in left side of the steering wheel, which advantage for the replacement. Also installed with a cigar lighter.

3.Adjustable damping seat with safety belt , and a yellow caution light

4.The off-road mobility is enhanced through by drive wheels with the MPT multi-function tire, wide base and cross-country tread pattern.

5.The greatest travel speed of the cross country forklifts is designed at 23km, quicker than a normal industry forklift truck.

6.The cross country forklifts has an effective and fast transportation stability on a smooth road surface.


All technical parameters are subject to change without prior notice because of technical improvements.
