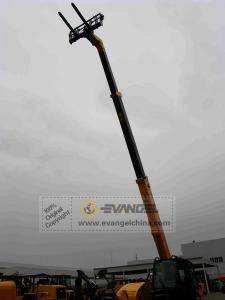

XCMG 4WD Telescopic Handler Forklift XT680-170
|
Cummins diesel engine |
QSB4.5 (Optional) |
|
Rated power kw |
82 |
|
Min.ground clearance mm |
400 |
|
Wheel base mm |
3250 |
|
Tread mm |
2060 |
|
Rated speed r/min |
2200 |
|
Displacement L |
4.4 |
|
Number of cylinder |
4 |
|
Max. speed km/h |
37 |
|
Operating weight t |
13.6 |
|
Maximum lift capacity kg |
4500 |
|
Lift capacity to full height kg |
2269 |
|
Lift capacity at full reach kg |
453 |
|
Lift height m |
16.7 |
|
Reach at maximum lift height m |
1.063 |
|
Maximum forward reach m |
12.6 |
|
Overall dimensions(L*W*H) mm |
6890×2500×2815 |
Telescopic forklift Truck is a kind of Multi-functional engineering machinery .telescopic forklift truck can be used for lift and carry, with good stability and efficiency. telescopic forklift truck has compact frame, flexible operation , sensitive lift, automatic adjustment ,high carrying capacity.
1. Adopt the Cummins engine which is powerful and with low maintenance. Reach Europe III(EPA Tier3) exhaustion standard, big torque force.
2. Equipped with power transmission, compact structure, high rigidity.
3. With articulated frame, small turning radius.
4. Four Wheel drive, front steering/crab wheel steering/four wheel steering.
5. The driver′s cabin is furnished with the system of the air conditioner, It is safe and comfortable, and the visual field is broad. It adopts shock attenuation, which improved the comportableness of the operating
6. Fully sealed wet multi-disc brakes in the wheel heads are protected from environmental influences.
7. Multi-function instrument can be chosed..It is a kind of machinery which is suitable for lifting and carrying in narrow ground.
All technical parameters are subject to change without prior notice because of technical improvements.
