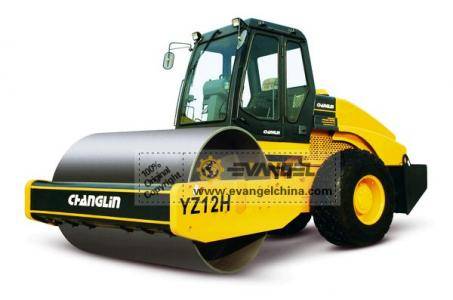

· Equipped with DongFeng Cummins engine
· Single frequency & Double amplitude, and super centrifugal force, creates strong compacting effect
· Reasonable configuration, reliable performance, and high working efficiency hydraulic components
· Operator's station is designed for comfort and safety. Fully-adjustable, suspension-mounted operator's seat.
· Rear-wheel hydraulic drive, and stepless T/M.
|
· Overall Dimension |
|
|||||||||||||
|
1 |
Length |
6000mm |
|
|||||||||||
|
2 |
Width(to outside of wheels) |
2300mm |
|
|||||||||||
|
3 |
Height(To the top of the cab) |
3055mm |
|
|||||||||||
|
4 |
Wheel base |
2945mm |
|
|||||||||||
|
5 |
Tread |
1560mm |
|
|||||||||||
|
6 |
Min. ground clearance |
395mm |
|
|||||||||||
|
Main Technical Specification |
|
|||||||||||||
|
1 |
Static lineforce |
300N/cm |
|
|||||||||||
|
2 |
Dynamic lineforce |
1174 N/cm |
|
|||||||||||
|
3 |
Operating weight |
12000kg |
|
|||||||||||
|
4 |
Nominal Amplitude –high –low |
1.75mm 0.85mm |
|
|||||||||||
|
5 |
Centrifugal-Force –high –low |
250kN 125kN |
|
|||||||||||
|
7 |
Static Weight at Drum |
6500kg |
|
|||||||||||
|
8 |
Static Weight at Tires |
5500kg |
|
|||||||||||
|
9 |
Frequency |
32Hz |
|
|||||||||||
|
10 |
Min. turning radius(Outside of rear wheel) |
5880mm |
|
|||||||||||
|
11 |
Drum diameter |
1530mm |
|
|||||||||||
|
12 |
Drum width |
2130mm |
|
|||||||||||
|
13 |
Drum thickness |
25mm |
|
|||||||||||
|
14 |
Traveling speed(Km/h), |
|
||||||||||||
|
|
Stepless transmission |
0~12.1 |
|
|||||||||||
|
15 |
Gradient capacity |
20% |
|
|||||||||||
|
Diesel engine |
|
|||||||||||||
|
1 |
Model |
Dongfeng Cummins engine 6BT5.9-C150 东风康明斯 |
||||||||||||
|
2 |
Type |
Direct injection. Turbocharged. Water cooling直喷式、涡轮增压、水冷 |
||||||||||||
|
3 |
Rated output |
110 kW |
||||||||||||
|
4 |
Bore and stroke |
102X120mm |
||||||||||||
|
5 |
Total exhaust of cylinder |
5.9 (L) |
||||||||||||
|
6 |
Rated speed |
2200(r/min) |
||||||||||||
|
7 |
Max. Torque |
590(N.M)/1500RPM |
||||||||||||
|
8 |
Starting type |
Electric |
||||||||||||
|
9 |
Min. specific fuel consumption |
217(g/Kw.h)//1600RPM |
||||||||||||
|
10 |
Net weight |
410±20(kg) |
||||||||||||
|
Driving System |
|
|||||||||||||
|
1 |
Model |
Static Hydraulic stepless driving |
|
|||||||||||
|
2 |
Type |
Drive pump +drive motor + reducer |
|
|||||||||||
|
3 |
Model of drive pump |
90R100 |
|
|||||||||||
|
4 |
Model of drive motor |
90M075 |
|
|||||||||||
|
5 |
System pressure |
42MPa |
|
|||||||||||
|
6 |
Type of reducer |
YZ14H.2A(Spur gear parallel shaft constant-mesh) |
|
|||||||||||
|
7 |
Gear ratio of reducer |
3.6 |
|
|||||||||||
|
Axle and Tire |
|
|||||||||||||
|
1 |
Type of main reducer |
spiral bevel gear, single stage |
|
|||||||||||
|
2 |
Gear ratio of main reducer |
3.889 |
|
|||||||||||
|
3 |
Type of final reducer |
Single stage planetary |
|
|||||||||||
|
4 |
Gear of ratio of final reducer |
4.941 |
|
|||||||||||
|
5 |
Gear ratios |
19.2155 |
|
|||||||||||
|
6 |
Size of tire |
23.1-26-12PR |
|
|||||||||||
|
Working Device Hydraulic System |
|
|||||||||||||
|
1 |
Model of tandem pump(vibratory+steering) |
HP051B498BIJM20-7BRAB06-1 |
|
|||||||||||
|
2 |
Vibrating hydraulic system pressure |
160(kgf/cm2) |
|
|||||||||||
|
3 |
Model of oil motor |
HM051A878BEP020-7 |
|
|||||||||||
|
4 |
Solenoid vibratory valve |
ZF250B |
|
|||||||||||
|
Steering System |
|
|||||||||||||
|
1 |
Type |
Middle articulated frame. Full-hydraulic Steering |
|
|||||||||||
|
3 |
Model of redirector |
BZZ1-E500C |
|
|||||||||||
|
4 |
System pressure |
12MPa |
|
|||||||||||
|
5 |
Dimension of steering cylinder |
Ф90*45*280(mm) |
|
|||||||||||
|
Brake System |
|
|||||||||||||
|
1 |
Type of traveling brake |
Single chamber brake valve Caplier disc brake Air over oil activate rear axle |
|
|||||||||||
|
2 |
Air pressure |
6-8(kgf/cm2) |
|
|||||||||||
|
3 |
Type of parking brake |
Hand brake Flexible shaft control clamp brake |
|
|||||||||||
|
Oil Capacity |
|
|||||||||||||
|
1 |
Fuel(diesel) |
250 (L) |
|
|||||||||||
|
2 |
Engine lubricating oil |
15 (L) |
|
|||||||||||
|
3 |
Oil for gear box |
2.2(L) |
|
|||||||||||
|
4 |
Oil for hydraulic system |
200 (L) |
|
|||||||||||
|
5 |
driving axles (R) |
Oil for main reducer主传动 |
18(L) |
|
||||||||||
|
Oil for final reducer轮边 |
2X3(L) |
|
||||||||||||
|
6 |
Oil for brake system |
1.5( L) |
|
|||||||||||
|
7 |
Oil for vibrating drum |
2X56(L) |
|
|||||||||||
