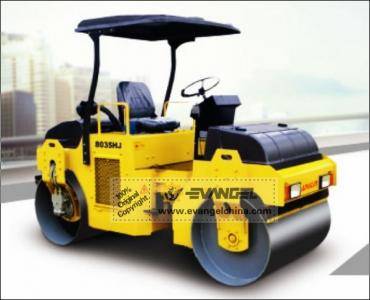

·Equipped with reliable changchai engine
·Single frequency & amplitude, and super centrifugal force, creates strong compacting effect.
·Hydrostatic travel and vibration drive, and stepless T/M.
·Reasonable configuration, reliable performance, and high working efficiency hydraulic components
·Operator's station is designed for comfort and safety. Fully-adjustable, suspension-mounted operator's seat.
|
·Overall Dimension |
|
||||||||||||||
|
1 |
Length |
2940mm |
|
||||||||||||
|
2 |
Width(to outside of wheels) |
1300mm |
|
||||||||||||
|
3 |
Height(To the top of the cab) |
2400mm |
|
||||||||||||
|
4 |
Wheel base |
2120mm |
|
||||||||||||
|
5 |
Min. ground clearance |
220mm |
|
||||||||||||
|
Main Technical Specification |
|
||||||||||||||
|
1 |
Static line force(vibratory Drum) |
162N/cm |
|
||||||||||||
|
2 |
Frequency |
50HZ |
|
||||||||||||
|
3 |
Centrifugal-Force |
32KN |
|
||||||||||||
|
4 |
Amplitude |
0.5mm |
|
||||||||||||
|
5 |
Operating weight |
3000kg |
|
||||||||||||
|
6 |
Static Weight at Drum |
1650kg |
|
||||||||||||
|
7 |
Static Weight at rear drum |
1350kg |
|
||||||||||||
|
8 |
Min. turning radius |
4300mm |
|
||||||||||||
|
10 |
Drum diameter |
760mm |
|
||||||||||||
|
11 |
Drum width |
1200mm |
|
||||||||||||
|
12 |
Traveling speed(Km/h)，2 forward &2 reverse |
|
|||||||||||||
|
|
(1) 1stgear (F/R) |
0~2.5 |
|
||||||||||||
|
(2) 2nd gear (F/R) |
0~7.2 |
|
|||||||||||||
|
13 |
Gradient capacity |
30% |
|
||||||||||||
|
Diesel engine |
|
||||||||||||||
|
1 |
Model |
Changchai engineN385Q |
|
||||||||||||
|
2 |
Type |
Vertical, in-line, liquid-cooled and four-stroke engine |
|
||||||||||||
|
3 |
Rated output |
21 kW |
|
||||||||||||
|
4 |
Rated speed |
2400(r/min) |
|
||||||||||||
|
5 |
Min. specific fuel consumption |
|
|
||||||||||||
|
Driving System |
|||||||||||||||
|
1 |
Type |
Hydraulic travel |
|||||||||||||
|
2 |
Transmission line |
Engine-pump- driving motor –reducer-axle |
|||||||||||||
|
Working Device Hydraulic System |
|||||||||||||||
|
1 |
Model of vibratory pump |
|
|||||||||||||
|
2 |
System pressure |
20mpa |
|||||||||||||
|
3 |
Model of vibratory motor |
|
|||||||||||||
|
SteeringSystem |
|||||||||||||||
|
1 |
Type |
Middle articulated frame. Full-hydraulic Steering |
|||||||||||||
|
2 |
Model of steering pump |
|
|||||||||||||
|
3 |
Model of redirector |
|
|||||||||||||
|
4 |
System pressure |
|
|||||||||||||
|
5 |
Dimension of steering cylinder |
|
|||||||||||||
|
Brake System |
|||||||||||||||
|
1 |
Type of travelingbrake |
static hydraulic brake |
|||||||||||||
|
2 |
Type of parking brake |
Hand brake Flexible shaft control clamp brake |
|||||||||||||
|
Oil Capacity |
|||||||||||||||
|
1 |
Fuel(diesel) |
|
|||||||||||||
|
2 |
Engine lubricating oil |
|
|||||||||||||
|
3 |
Oil for hydraulic system |
|
|||||||||||||
|
4 |
water for Sprinkle water tank |
|
|||||||||||||
