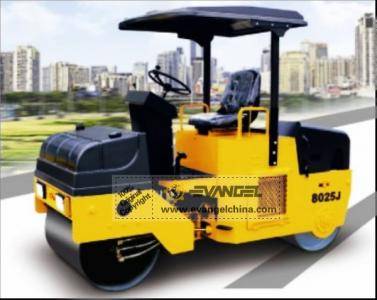

8025J Vibratory Roller

·Equipped with reliable changchai engine

·Single frequency & amplitude, and super centrifugal force, creates strong compacting effect.

·Reasonable configuration, reliable performance, and high working efficiency hydraulic components

·Operator's station is designed for comfort and safety. Fully-adjustable, suspension-mounted operator's seat.

·Overall Dimension

1

Length

2660mm

2

Width(to outside of wheels)

1060mm

3

Height(To the top of the cab)

2350mm

4

Wheel base

1930mm

5

Min. ground clearance

140mm

Main Technical Specification

1

Static line force(vibratory Drum)

140N/cm

2

Static line force(Driving drum)

134N/cm

3

Frequency

50HZ

4

Centrifugal-Force

20KN

5

Amplitude

0.5mm

6

Operating weight

2000kg

7

Static Weight at Drum

900kg

8

Static Weight at rear drum

1100kg

9

Min. turning radius

2250mm

10

Drum diameter

650mm

11

Drum width

850mm

12

Traveling speed(Km/h),2 forward &2 reverse


(1) 1stgear (F/R)

2

(2) 2nd gear (F/R)

5.6

13

Gradient capacity

20%

Diesel engine

1

Model

Changchai engineCZ380Q

2

Type

Vertical, in-line, liquid-cooled and four-stroke engine

3

Rated output

14.7 kW

4

Rated speed

2200(r/min)

5

Min. specific fuel consumption

255g/kw.h

Driving System

1

Type

Mechanical transmission and rear wheel drive

2

Transmission line

Engine-gearbox-chain-axle

Working Device Hydraulic System

1

Model of vibratory pump


2

System pressure

16mpa

3

Model of vibratory motor


SteeringSystem

1

Type

Middle articulated frame. Full-hydraulic Steering

2

Model of steering pump


3

Model of redirector


4

System pressure


5

Dimension of steering cylinder


Brake System

1

Type of travelingbrake

pedal control clamp brake

2

Type of parking brake

Hand brake

Flexible shaft control clamp brake

Oil Capacity

1

Fuel(diesel)


2

Engine lubricating oil


3

Oil for hydraulic system


4

water for Sprinkle water tank
