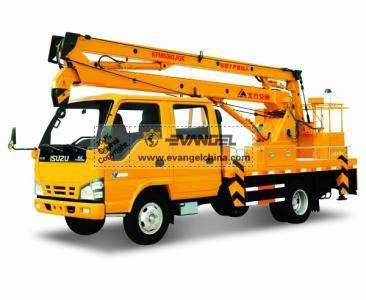

GKZ-14Q Aerial Working Platform


KaiFan Brand 14M Articulated Boom (ISUZU) Aerial Working Platform Technical Parameters

KFM5063JGK –GKZ-14Q



Working Condition

1Altitude: 0-1000m

2Temperature: -25℃--+45℃, environmental relative humidity ≤90%

3Allowed working condition: solid, stable land, the vehicle should be horizontal

4Wind force: ≤6 degree (wind speed ≤12.5m/s )



Working Range

KFM5063JGK Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on..



Main Parameter

Bulletin No.

KFM5063JGK

Type

GKZ-14Q

External dimensionsmm

6240×1950×2990

Structure type

Three-section articulated boom

Working Cage

Internal sizemm

1100×600×1100

Rated loadingkg

200or 2 persons

Max. Working heightmm

14000

Max. Height from groundmm

12300

Max. Working radiusmm

7050

Working radius when doing the highest heightmm

2990

Working Boom

Max. Raising angle of lower boomº

70

Max. Raising angle of upper boomº

70

Max. Raising angle of jibº

90

Boom rack rotation angleº

360

Outrigger

Vertical spanmm

2950

Horizontal spanmm

2750

Traveling of vertical outrigger

450

Adjustment

Single adjustable

Lifting

Rated lifting weightkg

995

Rated lifting heightmm

7700



 Chassis Introduction

Traveling

Performance

Parameters

Chassis model

ISUZU NKR77LLWCJAY

Persons

2+3

Axle base (mm)

3360

Wheel base (front/rear)mm

1504/1425

Driving mode

4×2

Front suspensionmm

1015

Rear suspensionmm

1865

 Approaching angleº

24

Departure angleº

11

Max. Grade ability%

30

Min. Turning diametermm

13600

Min. Ground clearancemm

190



Engine

Engine model

4KH1-TC

Rated powerKw/r/min

96/3400

TorqueNm/r/min

280/1700

Max. Speedkm/h

80

Specification of the tire

7.50-15,7.00-16

The whole weightkg

5185

Max. Weight with whole loadingkg

5510



 Equipments Introduction

1.   ISUZU NKR77LLWCJAY

2.    Working boom assembly

3.      Rotation structure assembly

4.      Body transformation assembly

5.     Extending outrigger

6.      Spare type & tool box

7.      system assembly

8.      Electric system assembly

9.     Safety control system

10.   Working cage assembly

11.  Safety belt

12.  Safety lift & Moving guard bar

13.   Balance slid rod device

14.   bag & tools

15.   Safety warning & Light

16.   Air- conditioning

17.   Lifting device



Vehicle Information

1.      Manual Instruction

2.      Operation manual of chassis

3.      Guarantee of chassis

4.      Certification of quality of the vehicle

5.      Maintenance Manual (Operation instruction)

6.      Operating safety certification
