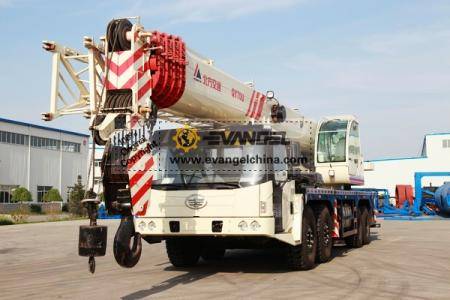

QY70U Truck Crane


KaiFan Brand 70T (FAW) Crane Technical Parameters

KFM5485JQZ70U – QY70U



Working Condition

1Altitude: 0-4500m

2Temperature:-25℃--+45℃

3Allowed working condition: solid, stable land, the vehicle should be horizontal

4Wind force: ≤6 degree



 Working Range

“KAI FAN” Brand KFM5485JQZ70UQY70UCrane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 70t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.



Main Parameters

Items

Unit

Value

Working Performance  Parameters

Max. Rated lifting weight

kg

70000

Max. Lifting force of the basic boom

kN.m

2400

Max. Lifting force of the longest main boom

kN.m

1120

Max. Lifting height of the basic boom

m

12.49

Max. Lifting height of the main boom

m

44.60

Max. Lifting height of the vice boom

m

61.2

Working Speed

Max. Speed of the single rope

m/min

120

Extending time of the lifting boom

s

150

Lifting time of the lifting boom

s

75

Turning speed

r/min

0-2

行驶参数

Traveling Parameters

Max. Travelling speed

km/h

72

Max. Grade ability

%

30

Min. Turning radius

m

12

Min. Ground clearance

m

0.230

Approaching angle

°

18

Departure angle

°

11

Weight Parameters

The whole weight

kg

47870

Load of the front axle

kg

9935/9935

Load of the rear axle (double axles)

kg

28000

Dimension Parameters

External dimensionlength*width*height

mm

14350×2800×3750

Vertical span of outrigger

m

5.95

Horizontal span of outrigger

m

7.7

Length of main boom

m

11.644

Length of vice boom

m

9.6-16.1

Elevation of main boom

°

-280

Chassis

Model

CA5480JQZ

Engine model

WP12.375

Rated power/speed

kw/r/min

276/2100

Max. Torque/rotate speed

n.m/r/min

1500/1350





Standard Equipments

1.          FAW CA5480JQZ

2.          Main boom assembly

3.           Vice boom assembly

4.           Hanging hook assembly

5.           Windlass assembly

6.           Slewing system

7.           Electric system

8.           Hydraulic system

9.          Outrigger

10.        Superstructure control system

11.        Chassis control system

12.         Tool box
