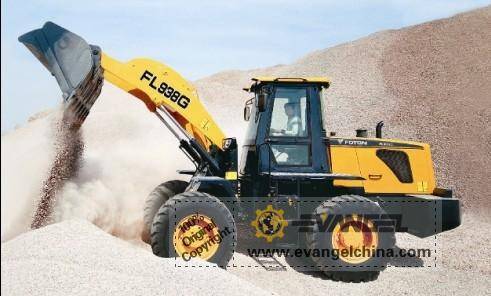

FL938G Wheel Loader
Technical features of FL938G
1.Equipped with DEUTZ WP6G140E22 as standard configuration and with LOVOL1006T engine as optional;
2. Powershift transmission,electro-hydro-gas control, convenient manipulation and the impact of shift gears is small.
3.Adopted large vision field, all closed damping cab, comfortable and safe operating environment;
4. Adopted pilot control, easy and light operation;
5. Long wheelbase, high stability of whole machine operation;
|
Parameter Items |
Parameter Value |
|
1.Main parameter |
|
|
Rated load (kg) |
3500 |
|
Operating Weight (standard) (kg) |
11000 |
|
Rated Bucket Capacity (m3) |
2 |
|
Maximum breakout force (KN) |
125 |
|
Maximum traction force (KN) |
96 |
|
Total hydraulic cycle time (s) |
9.7 |
|
Maximum dump height (mm) |
2940 |
|
Maximum dump distance (mm) |
1160 |
|
Forward speed range (Km / h) |
0～36.5 |
|
Reverse speed range (Km / h) |
0～35 |
|
Transport dimensions (L × W × H) (mm) |
7250×2424×3230 |
|
Maximum steering angle (°) |
36 |
|
Max. Grade ability(°) |
30 |
|
Minimum turning radius (mm) |
6005 |
|
Tire Size |
17.5-25-12PR |
|
2.Engine parameter |
|
|
model |
Deutz WP6G140E22 |
|
Type |
6-cylinder, in-line, direct injection and turbocharged |
|
Power (kw) |
105 |
|
Maximum torque (N.m) |
540@1500～1600 |
|
Cylinder diameter (mm) |
105 |
|
Stroke (mm) |
120 |
|
Output volume (L) |
6.234 |
|
Fuel consumption ( kw.h) |
220 |
|
3.Hydraulic system |
|
|
Work system Pressure (Mpa) |
16 |
|
4.Braking System |
|
|
Running braking system type |
Single pipeline gas-oil 4-wheel clipper disc braking |
|
Parking / emergency brake system type |
Clipper disc braking |
|
5.Fuel Tank Capacity |
|
|
Fuel tank (L) |
155 |
|
Hydraulic Tank capacity (L) |
180 |
