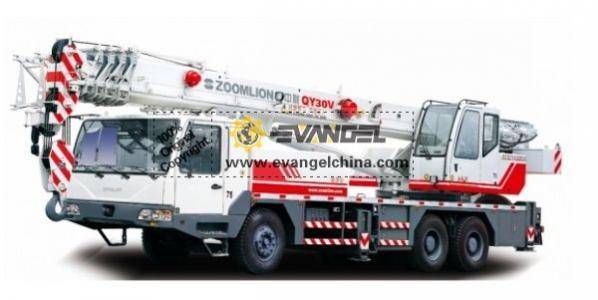

QY30V532 Truck Crane

QY30V532 Truck Crane



Features



The QY30V532truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performance product integrating our company many years’ manufacturing experience with advanced technologies. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.

The truck crane, with spacious cab and compact decoration, adopts full slewing system, 5-section telescopic boom sections, hydraulic proportional control system and self-made full-width special purpose chassis with three axles. The 6×4 drive and hydraulic power steering mechanism provides the crane with good driving performance and flexible steering. The engine complies with the NationalStage III emission standard.

The system with latest load feedback hydraulic operated proportional directional control valve and quadruple gear pump, and the safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage and makes full use of the working capacity of each actuating mechanism. Thus the reliability and safety of the crane are increased.

The safety devices such as load moment limiter, and the complete lighting system equipped in the crane ensure your safety during operation and are convenient for night work.



Parameter



Item

Value

Remarks

Working performance specification

Max. rated total lifting capacitykg

32000

Max. load moment of basic boomkN.m

1132

Max. load moment with max. main boom lengthkN.m

588

Max. lifting height of basic boomm

11.1

Max. lifting height of main boomm

40.5

Deformation of boom is not taken into consideration.

Max. lifting height of fly jibm

48.5

Working speed

Max. speed of single rope on main winch m/min

120

The 4th layer of drum

Max. speed of single rope onauxiliary winch m/min

100

The 2nd layer of drum

Derricking time of booms

40

Telescopic time of booms

80

Slewing speedr/min

0~2.2

Traveling specification

Max. traveling speedkm/h

78

Max. gradeability%

37

Min. turning circle diameter m

22

Min. ground clearancemm

220

Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005

GB17691-2005 (StageⅢ)

Oil consumption per hundred kilometersL

45

Mass specification

Deadweight of crane in traveling conditionkg

32000

Complete vehicle kerb mass kg

31870

Front axle loadkg

7000

Rear axle loadkg

25000

Dimension specification

Overall dimensions (L×W×H)mm

12900×2500×3465

Base on outriggersm

5.36

Distance between outriggersm

6.1

Main boom lengthm

10.6~40.0

Main boom angle°

-2~80

Fly jib lengthm

8

Offset angle of fly jib°

0 , 30

Chassis

Model

ZLJ5323

Feature No:ZLJ5323V3.2

ZLJ5323V3.3T

Class

II

Engine

Model

WP10.270

QSC 260

Rated powerkW/r/min

199/2200

194/2200

Max. output torqueN.m/r/min

1100/1300~1600

1180/1500
