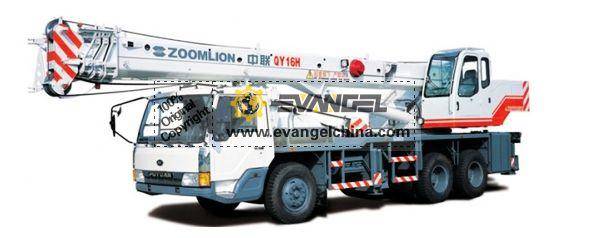

QY16H431 Truck Crane

QY16H431 Truck Crane



Features



The QY16H431 truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performance product integrating our company many years’ manufacturing experience with advanced technologies. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.

The truck crane, with spacious cabandcompact decoration, adopts full slewing system, 4-section telescopic boom sections, unique manual proportional control system and self-made full-width special purpose chassis with three axles. 6×4 drive provides the crane with good driving performance and flexible steering. The engine complies with the National Stage III emission standard.

The system with latest load feedback hydraulic operated proportional directional control valve and quadruple gear pump, and the safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage and makes full use of the working capacity of each actuating mechanism. Thus the reliability and safety of the crane are increased.

The safety devices such as load moment limiter, and the complete lighting system equipped in the crane ensure your safety during operation and are convenient for night work.



Parameter



Item

Value

Remarks

Working performance specification

Max. rated total lifting capacitykg

16000

Max. load moment of basic boomkN.m

710

Max. load moment with max. main boom lengthkN.m

408

Max. lifting height of main boomm

31.08

Deformation of boom is not taken into consideration.

Max. lifting height of fly jibm

38.5

Working speed

Max. speed of single rope on main winch

m/min

120

The 4th layer of drum

Max. speed of single rope onauxiliary winchm/min

90

Derricking time of boom s

55

Telescopic time of booms

70

Slewing speedr/min

0~2

Traveling specification

Max. traveling speedkm/h

70

Max. gradeability%

28

Min. turning circle diameterm

20

Min. ground clearancemm

250

Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005

GB17691-2005

(Stage III)

Oil consumption per hundred kilometers

38 L

Mass specification

Deadweight of crane in traveling conditionkg

23000

Complete vehicle kerb masskg

22805

Front axle loadkg

6200

Rear axle loadkg

16800

Dimension specification

Overall dimensions (L×W×H)mm

12050×2500×3400

Base on outriggersm

4.95

Distance between outriggersm

5.4

Main boom lengthm

9.8~30.8

Main boom angle°

-2~80

Fly jib lengthm

7.5

Offset angle of fly jib°

0 , 30

Chassis

Model

ZLJ5261

Class

II

Engine

Model

WP6.240

Rated powerkW/r/min

176 /2500

Max. output torqueN.m/r/min

800 /1300~1500
