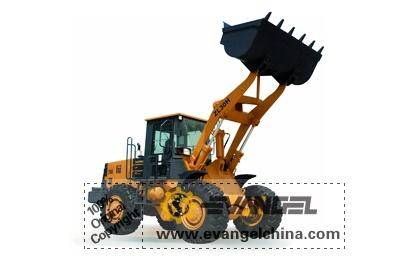

ZL30H Wheel Loader
Description of Wheel Loader ZL30H:
Wheel loader ZL30H is equipped with Chinese Dongfeng-Cummins Engine, 3 forward 3 reverse power shift transmission, Combined seal cylinder which obtains high seal performance and more reliability. This Wheel loader ZL30H is recognized as a kind of useful construction machinery (construction equipment).
Applications of Wheel Loader ZL30H:
Wheel loader ZL30H is a type of construction equipment (engineering vehicle, construction machinery) that is primarily used to scoop up material such as asphalt, demolition debris, dirt, gravel, logs, raw minerals, rock, sand, wood chips, etc. to another place.
Specifications of Wheel Loader ZL30H:
|
Overall Dimension |
||
|
1 |
Length(with bucket on ground) |
6863(mm) |
|
2 |
Width(to outside of wheels) |
2305mm) |
|
3 |
Bucket width |
2460(mm) |
|
4 |
Height(To the top of the cab) |
3095(mm) |
|
5 |
Wheel base |
2750(mm) |
|
6 |
Tread |
1855(mm) |
|
7 |
Min. ground clearance |
370(mm) |
|
Main Technical Specification |
||
|
1 |
Rated load |
3000(Kg) |
|
2 |
Operating weight |
10200KG |
|
3 |
Rated bucket capacity |
1.7(m3) |
|
4 |
Max. breakout force |
96kN |
|
5 |
Max. dump clearance |
2850(mm) |
|
6 |
Dump reach |
1030(mm) |
|
7 |
Dump angle at any position |
≥450 |
|
8 |
Min. turning radius |
|
|
|
(1) Outside of bucket |
5600(mm) |
|
(2) Outside of rear wheel |
5205(mm) |
|
|
9 |
Pivot angle frame |
38+10 |
|
10 |
Oscillating angle of rear axle |
+110 |
|
11 |
Lifting time of bucket |
≤5.1(sec.) |
|
12 |
Lowering time of bucket |
≤3.0(sec.) |
|
13 |
Dumping time |
≤1.1(sec.) |
|
14 |
Traveling speed(Km/h)，3 forward and 3 reverse |
|
|
|
(1) 1st gear forward |
7.3 |
|
(2) 2nd gear forward |
15.7 |
|
|
(3) 3rd gear forward |
35 |
|
|
(1) 1st gear reverse |
7.8 |
|
|
(2) 2nd gear reverse |
16.8 |
|
|
(3) 3rd gear reverse |
36 |
|
|
Diesel engine |
||
|
1 |
Model |
Dongfeng Cummins 6BT5.9 – C120 |
|
2 |
Type |
Direct injection. Turbocharged. Water cooling4 |
|
3 |
Rated output |
87(KW) |
|
4 |
Inter-bore of cylinder/stroke |
102 /120 (mm) |
|
5 |
Total exhaust of cylinder |
5.9 (L) |
|
6 |
Voltage of starting motor |
24(V) |
|
7 |
Rated speed |
2200(r/min) |
|
8 |
Max. Torque |
440(N.M) |
|
9 |
Starting type |
Electric |
|
10 |
Min. specific fuel consumption |
220(g/Kw.h) |
|
Transmission System |
||
|
1. Torque Converter |
||
|
1 |
Model |
YJH315A-4 (Shanxi Aerospace Power) |
|
2 |
Type |
3-elements. Single stage |
|
3 |
Torque ratio |
2.4 |
|
4 |
Cooling type |
Pressure oil circulating |
|
2. Transmission case |
||
|
1 |
Model |
Chinese Changlin |
|
2 |
Type |
power shift, spur gear constantly in mesh |
|
3 |
Gear shift position |
3 Forward and 3 reverse gears |
|
3. Axle and Tire |
||
|
1 |
Type of main reducer |
spiral bevel gear, single stage |
|
2 |
Gear ratio of main reducer |
3.889 |
|
3 |
Type of final reducer |
Single stage planetary |
|
4 |
Gear ratio of final reducer |
4.941 |
|
5 |
total ratios |
19.216 |
|
6 |
Max. traction |
83kN |
|
7 |
Specifications of tire |
17.5-25-12PR |
|
Working Device Hydraulic System |
||
|
1 |
Model of oil pump |
CBGj2100 |
|
2 |
System pressure |
160(kgf/cm2) |
|
3 |
Model of distribution valve |
DF32 |
|
5 |
(D*L)Dimension of lifting cylinder |
Ф125*70*697(mm) |
|
6 |
(D*L)Dimension of tilting cylinder |
Ф150*70*466 (mm) |
|
Steering System |
||
|
1 |
Type |
Middle articulated frame. Co-axis flow amp. Steering |
|
2 |
Model of steering pump |
CBGj2050 |
|
3 |
Model of steering gear |
BZZ1-E400C/FKA-143020 |
|
4 |
System pressure |
14MPa |
|
5 |
Dimension of steering cylinder |
Ф70*40*323(mm) |
|
Brake System |
||
|
1 |
Type of traveling brake |
Assisted oil.4 wheel brake |
|
2 |
Air pressure |
7-8(kgf/cm2) |
|
3 |
Type of emergency brake |
Automatic cutting air brake |
|
4 |
Type of parking brake |
inner expand hoof |
|
Oil Capacity |
||
|
1 |
Fuel(diesel) |
120(L) |
|
2 |
Engine lubricating oil |
20(L) |
|
3 |
Oil for converter and gear box |
32(L) |
|
4 |
Oil for hydraulic system |
120(L) |
|
5 |
Oil for driving axles(F/R) |
16/15(L) |
