Current Position: Products > Truck-Mounted Crane > XCMG

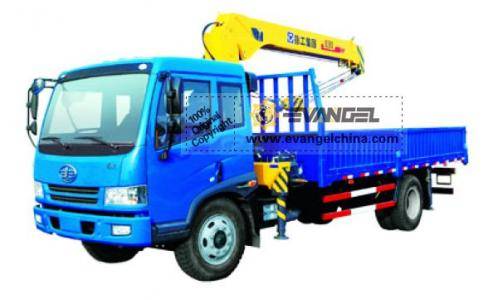

SQ6.3SK2Q/K3Q Truck-Mounted Crane

SQ6.3SK2Q/K3Q Truck-Mounted Crane



Parameter



Max Lifting Capacity

6300

kg

Max Lifting Moment

15.7

T.M

Recommend Power

20

kw

Max Oil Flow of Hydraulic System

40

L/min

Max Pressure of Hydraulic System

20

MPa

Oil Tank Capacity

90

L

Rotation Angle

All Rotation

Crane Weight

2117/2270

kg

Installation Space

900

mm

Choice of Chassis

CA1163P7K2L3E 解放;CA1176PK2L9T3A95 柳特;CA1170PK2L7T3EA80青岛解放;CA1140PK2L3EA80 青岛解放;DFL1140B东风;EQ1126KJ1东风;HFC1202KR1K3江淮;EQ1141NBJ2东风;EQ5161GFJ7东风;BJ1317VNPJJ-S5北汽福田;EQ5201GFJ6东风;LZ1160LCMT东风柳汽;DFL1250A9东风;BJ5317ZNPJJ-S北汽福田;NXG1160D3ZAL1X徐工;

SQ6.3SK2Q Lifting capability diagram



Working radius (m) 2.5 3.82 6.17 8.5
Lifting capacity (kg) 6300 2900 1600 1200

SQ6.3SK3Q Lifting capability diagram



Working radius (m) 2.5 3.96 6.3 8.6 11
Lifting capacity (kg) 6300 2800 1600 1200 600
