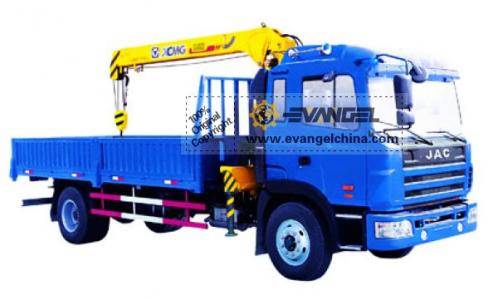

SQ4SK2Q/SQ4SK3Q Truck-Mounted Crane

SQ4SK2Q/SQ4SK3Q Truck-Mounted Crane



Parameter



Max Lifting Capacity

4000

kg

Max Lifting Moment

8.40/10

T.M

Recommend Power

16

kw

Max Oil Flow of Hydraulic System

25

L/min

Max Pressure of Hydraulic System

20

MPa

Oil Tank Capacity

60

L

Rotation Angle

All Rotation

Crane Weight

1350

kg

Installation Space

850

mm

Choice of Chassis

DFL1120B东风;EQ1081GJ12D5东风;HFC1132KR1K3江淮;LZ1120LAPT东风柳汽;EQ1092FJ1东风;EQ1092FJ东风EQ1092F3GJ1东风;EQ5121GFJ东风;

SQ4SK2Q Lifting capability diagram



Working radius (m) 2.1 3.43 5.67 7.93
Lifting capacity (kg) 4000 2270 1164 754

SQ4SK3Q Lifting capability diagram



Working radius (m) 2.5 3.42 5.42 7.42 9.42
Lifting capacity (kg) 4000 2600 1600 900 400
