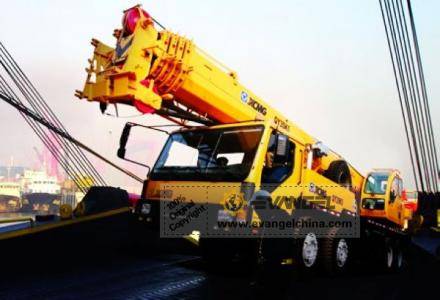

QY35K5 Truck Crane

QY35K5 Truck Crane



Feature



Wide cab
Five-segment U section boom
Single cylinder luffing and double-winch
Manual mechanical control
Spacious and luxury streamline cab

U boom system
Constantly optimize the boom section, completely releasing the carrying capacity of the plates, which makes the lifting more reliable and safer.

Compact boom head
Extend the jib length, which can extend the working radius to the most.

Hydraulic pipeline
The pipeline adopts high-precision cold drawing steel pipe, matching with the cutting ferrule, which is good looking and easy to maintain.

Operating cab
It has large space and wide views. The control levers and instrument buttons are at hand.

Torque limiter
The colorful LCD display of the torque limiter can shows all the important operating information.

Engine
Reasonable matching, energy efficiency and environmental protection, and strong power meet the economical running of the required power.



Parameter



Dimension

Unit

QY35K5

Overall length

mm

12620

Overall width

mm

2500

Overall height

mm

3350

Weight





Total weight in travel

kg

36930

Front axle load

kg

12330

Rear axle load

kg

24600

Power





Engine model



SC9DK320Q3

Engine rated power

kW/(r/min)

235 / 2200

Engine rated torque

N.m/(r/min)

1250 / 1400

Travel





Max. travel speed

km/h

75

Min. turning diameter

m

19.5

Min. ground clearance

mm

260

Approach angle

°

17

Departure angle

°

15.7

Max. grade ability

%

40

Fuel consumption for 100km

L

30

Main performance





Max. rated total lifting capacity

t

35

Min. rated working radius

mm

3000

Turning radius at turntable tail

m

3.055

Max. lifting torque

kN.m

1200

Base boom

m

10.5

Fully extended boom

m

39.6

Fully extended boom+ jib

m

54.6

Longitudinal outrigger span

m

5.35

Lateral outrigger span

m

6

Working speed





Boom luffing time

s

68

Boom full extension time

s

≤155

Max. swing speed

r/min

≥2.5

Max. speed of main winch (single rope)

m/min

≥130

Max. speed of aux. winch (single rope)

m/min

≥130
