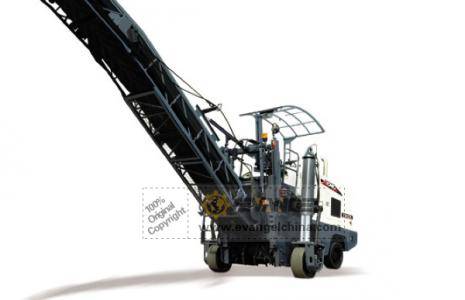

XM130K Cold Milling Machine

XM130K Cold Milling Machine



XM Series milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large-scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.

Performance and characteristic

⊙The milling drum is driven by two four-link belts with automatic tensioning drvice.

⊙The moving system is the four-wheel fully hydraulic driving .The differential lock makes uniform driving forces even on the slippery road surface.

⊙The machine has the advantages of being suitable for different milling materials and milling depth ,optimizing power output automatic adjusting function and implementing maximization of the productivity.

⊙The brake system implements the travelling brake by the reverse dragging of the hydraulic system .The multi-disc typed brake is arranged on the rear wheel reducer to implement the parking brake .

⊙The automatic depth control (selectable )adopts the contact-typed or non contact-typed sensor for detection with digitally displayed milling depth.



Model

XM130K

Max. milling with
mm
1320

Max. milling depth
mm
315
Milling wheel
Number of tools

112
Drum diameter with tools
mm
980
Engine
Model

6CTA8.3-C260
Rated power
kW
194
Rated speed
rpm
2100
Specifications
Operating speed
m/min
0~30
Travel speed
km/h
0~7
Ground clearance
%
50
Ground clearance
mm
≤200
Operating weight
kg
20000
Volume
Fuel tank
L
280
Hydraulic oil tank
L
160
Water tank
L
780
Conveyor
Width
mm
600
Measurement
Overall machinery LxWxH
mm
5255×2480×3245
Conveyor LxWxH
mm
7020×1030×900
Travel mode

Tire



All technical parameters are subject to change without prior notice because of technical improvements.
