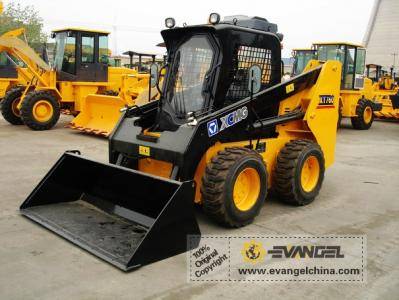

XT760 Skid Steer Loader

XT760 Skid Steer Loader



Features:



XT760 skid steer loader adopts the latest standards, and it is the new generation product featuring high efficiency, beautiful appearance, safety and reliability. With wheeled undercarriage, all wheel drive and skid steering, it can quickly replace or couple multiple working devices at the work site for different work conditions. The compact type multifunctional construction machinery is developed on the base of similar products of both home and abroad with modern design methods like virtual prototype and finite-element analysis, and it has obvious advantages in the performance. It is applicable to work conditions of narrow site, rough ground, and frequently changed work items; and it can also be used as the auxiliary equipment of large construction machinery. It can be widely used in road maintenance, pipe and cable laying, landscaping, snow removal, goods handling, cutting and crushing, etc.
•The hydraulic tank, fuel tank, and chassis are integrated as one, which is more sturdy and saves space.
•It adopts world-famous Yanmar engine and Rexroth hydraulic parts, which ensures that it is capable of various kinds of work.
•The automatic leveling system ensures that the bucket keeps level during boom lifting.
•The boom lifting/lowering and bucket rotation can be performed at the same time, which greatly improves work efficiency.
•As the proportional controlled pilot handle is simple to operate with less effort, the operator is not easy to get tired and he/she can operate the machine skillfully in a short time
•With the internationally universal quick coupling device, various kinds of attachments can be replaced quickly and conveniently. The pipe joints are also standard parts, and most accessories of other manufacturers can be used on the machine.
•The cab is spacious with good visibility, and all the instruments are ergonomically allocated, which is easy to check.
•All the switches and buttons are easy to reach, and the safety guardrails can avoid unexpected leaving the seat. And there are four safety measures to ensure the safety of operators.
•The cab can tip forward at large angle; the engine throttle has two modes, i.e. manual control and foot accelerator, which is very convenient to operate; and it can be replaced with various attachments



Parameter:



XT760 Skid Steer Loader

Dimension

3849×1950×2083 mm

Total weight

3900 kg

Tire specification

12-16.5NHS 10RP

Bucket capacity

0.65m3

Rated load

1100kg

Dump height

2479 mm

Dump reach

748 mm

Boom lift time

<5 s

Total cycling time

<10.5s

Breakout fcrce

>22kN

Axle base

1246 mm

Wheel base

1475 mm

Engine

Weichai Deutz

Model

D226B-4

Rated Power

60kW

Rated speed

2500 r/min

Max.travel speed

12 km/h
