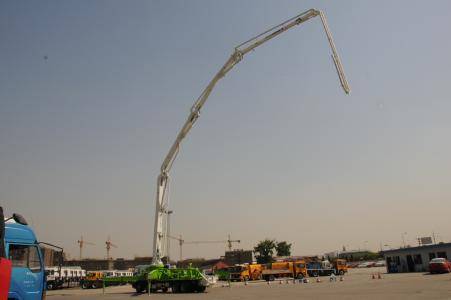

HDL5381THB Concrete Pump

CHASSIS

Chassis Model                           CYH51Y

Emission Stage                            Euro III

Engine Power                             287 kw

Engine Displacement                    11.946 L

Driving Type                                  8*4

Wheelbase                     1850+4605+1310 mm

Max. Running Speed                     89 km/h

Min. Turning Radius                        11.9 m

Approach/Departure Angle           18.7/10.2°

Tyre Type                            295/80R22.5

BOOM SYSTEM

Max. vertical reach                       47.2 m

Max. horizontal reach                     43.2 m

Reach depth                             33.7 m

Unfolding height                           9.3 m

Boom control mode                     Manualwire and wireless remote control are all available

Boom type                                   RZ

Boom section articulation     90/180/180/180/265

                             90/180/180/180/240

Slewing range                             365°

Front Outriggers spread                 8800 mm

Rear Outrigger spread                 10030 mm

End hose length                             3 m

Arm attached pipeline diameter         125 mm

HYDRAULIC SYSTEM

Hydraulic System Type                 Close loop

System Working Pressure                  35 MPa

Main Hydraulic Pump                     Rexroth

Main Hydraulic Pump Type             A11VLO190/A4VG125+A4VG125

Main Hydraulic Pump Displacement   125+125ml/r

Main Hydraulic Directional Valve         VICKERS

Oil Suction&Return Filter                  SOFIMA

Multi-Way Valve                           HAVE

Pressure Relief Valve                        Lixin

Hydraulic Seals                          PARKER

Hydraulic Hose                          MANULI

Hydraulic Oil Tank Capacity                 650 L

Water Tank Capacity                       550 L

Water pump                         BLACK CAT

ELECTRICAL CONTROL SYSTEM

Power Supply               Apollo 12V 165AH×2

Control Module             Hirschman IFLEX C3-H

Working Voltage                        DC 24V

Relay                                 OMRON

Proximity Switch                        Bedook

Wireless Remote Controller                 HBC

DIMENSIONS&WEIGHT

Overall Length                         12700 M

Overall Width                           2490 M

Overall Height                           3990 M

Overall Net Weight                    38000 KG

PUMPING SYSTEM

Concrete Valve                         S valve

Max. Concrete Output              148/90 m3/h

Max. Concrete Pressure              8/12.5 MPa

Hydraulic Strokes                    14/23 min-1

High And Low Pressure Exchanger      Available

Hydraulic Cylinder Bore/Stroke    Φ135*2100mm

Concrete Cylinder Bore/Stroke   Φ250*2200mm

Hopper Charge Height              ≤1500 mm

Concrete Hopper Capacity              0.7 m3

Concrete Slump                    120-230 mm
