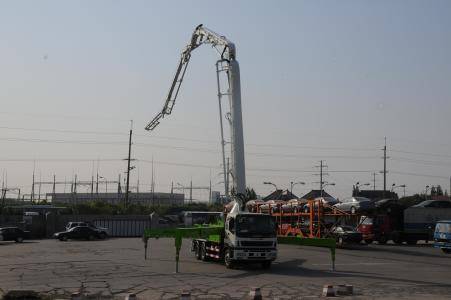

HDL5330THB Concrete Pump

CHASSIS

Chassis Model                             CYZ51Q

Emission Stage                              Euro III

Engine Power                               265 kw

Engine Displacement                       14.256L

Driving Type                                    6*4

Wheelbase                         4595+1310 mm

Max. Running Speed                       85 km/h

Min. Turning Radius                           8.8 m

Approach/Departure Angle             18.2/10.2°

Tyre Type                              295/80R22.5

BOOM SYSTEM

Max. vertical reach                         42.8 m

Max. horizontal reach                       38.8 m

Reach depth                               26.6 m

Unfolding height                           10.65 m

Boom control mode                       Manualwire and wireless remote control are all available

Boom type                                  RZ

Boom section articulation       90/180/180/240/240

Slewing range                               365°

Front Outriggers spread                   8500 mm

Rear Outrigger spread                    8560 mm

End hose length                               3 m

Arm attached pipeline diameter           125 mm

HYDRAULIC SYSTEM

Hydraulic System Type                  Open loop

System Working Pressure                    32 MPa

Main Hydraulic Pump                      Rexroth

Main Hydraulic Pump Type              A11VLO190

Main Hydraulic Pump Displacement        190 ml/r

Main Hydraulic Directional Valve           VICKERS

Oil Suction&Return Filter                    SOFIMA

Multi-Way Valve                             HAVE

Pressure Relief Valve                           Lixin

Hydraulic Seals                            PARKER

Hydraulic Hose                            MANULI

Hydraulic Oil Tank Capacity                   600L

Water Tank Capacity                         500 L

Water pump
