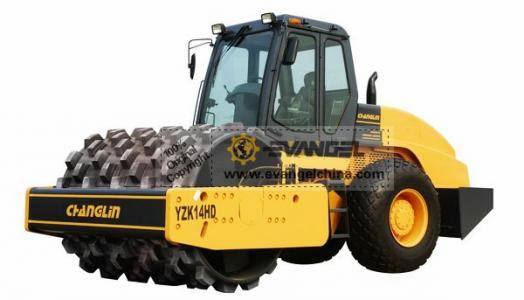

· Equipped with DongFeng Cummins engine
· Double frequency & Double amplitude, and super centrifugal force, creates strong compacting effect
· Reasonable configuration, reliable performance, and high working efficiency hydraulic components
· Operator's station is designed for comfort and safety. Fully-adjustable, suspension-mounted operator's seat.
· Hydrostatic travel and vibration drive, and stepless speed regulating.
· Dismountable PD model consist of 3 segment.
|
· Overall Dimension |
|||||||||||||||||||
|
1 |
Length |
6095mm |
|||||||||||||||||
|
2 |
Width(to outside of wheels) |
2300mm |
|||||||||||||||||
|
3 |
Height(To the top of the cab) |
3055mm |
|||||||||||||||||
|
4 |
Wheel base |
2945mm |
|||||||||||||||||
|
5 |
Tread |
1560mm |
|||||||||||||||||
|
6 |
Min. ground clearance |
With PD |
420mm |
||||||||||||||||
|
Without PD |
360mm |
||||||||||||||||||
|
Main Technical Specification |
|||||||||||||||||||
|
1 |
Static lineforce(without PD) |
410N/cm |
|||||||||||||||||
|
2 |
Dynamic lineforce(without PD) |
1370 N/cm |
|||||||||||||||||
|
3 |
Operating weight |
With PD |
15130kg |
||||||||||||||||
|
Without PD |
13630kg |
||||||||||||||||||
|
4 |
Nominal Amplitude with PD |
High |
1.48 mm |
||||||||||||||||
|
Low |
0.73mm |
||||||||||||||||||
|
Nominal Amplitude without PD
|
High |
2.08 |
|||||||||||||||||
|
Low |
1.02 |
||||||||||||||||||
|
5 |
Centrifugal Force –high –low |
At low frequency and high amplitude |
292kN |
||||||||||||||||
|
At high frequency and low amplitude |
182kN |
||||||||||||||||||
|
6 |
Distribution weight of Drum |
With PD |
9630kg |
||||||||||||||||
|
Without PD |
8130 kg |
||||||||||||||||||
|
7 |
Distribution weight of Tires |
5500kg |
|||||||||||||||||
|
8 |
Frequency |
31/35Hz |
|||||||||||||||||
|
9 |
Min. turning radius(Outside of rear wheel) |
5900mm |
|||||||||||||||||
|
10 |
Drum dimension(with PD)：Diameter X width X thickness |
1702×2100×28（mm） |
|||||||||||||||||
|
Drum dimension(without PD)：Diameter X width X thickness |
1530×2100×28（mm） |
||||||||||||||||||
|
11 |
PD model specification |
Number of pad feet |
135 |
||||||||||||||||
|
Area of one pad foot |
142cm2 |
||||||||||||||||||
|
Height of pad feet |
100mm |
||||||||||||||||||
|
12 |
Traveling speed(Km/h)，2 forward &2 reverse |
||||||||||||||||||
|
|
(1) 1st gear (F/R) |
0～6.6 |
|||||||||||||||||
|
|
(2) 2nd gear (F/R) |
0～10.8 |
|||||||||||||||||
|
13 |
Gradient capacity |
With PD |
30% |
||||||||||||||||
|
Without PD |
40% |
||||||||||||||||||
|
· Diesel engine |
|||||||||||||||||||
|
1 |
Model |
DongFeng Cummins engine 6BT5.9 |
|||||||||||||||||
|
2 |
Type |
Vertical, in-line, liquid-cooled and four-stroke engine |
|||||||||||||||||
|
3 |
Rated output |
110 kW |
|||||||||||||||||
|
4 |
Total exhaust of cylinder |
5.9 (L) |
|||||||||||||||||
|
5 |
Rated speed |
2200(r/min) |
|||||||||||||||||
|
6 |
Max. Torque |
590(N.M)/1500RPM |
|||||||||||||||||
|
7 |
Starting type |
Electric |
|||||||||||||||||
|
8 |
Min. specific fuel consumption |
229(g/Kw.h) |
|||||||||||||||||
|
9 |
Net weight |
410±20(kg) |
|||||||||||||||||
|
Driving System |
|||||||||||||||||||
|
1 |
Model |
Hydrostatic travel and vibration drive |
|||||||||||||||||
|
2 |
Connection type of all pumps |
driving pump＋working pump＋steering pump |
|||||||||||||||||
|
3 |
Type |
Drive pump +drive motor + reducer |
|||||||||||||||||
|
4 |
Model of drive pump |
90R075 |
|||||||||||||||||
|
5 |
Model of vibration driving motor +reducer Ratio of reducer |
HICR30SVM2RMBR+PMC20000 81.6 |
|||||||||||||||||
|
6 |
Model of rear driving motor+ reducer Ratio of reducer |
51D080+EM1020/MR/3.08 3.08 |
|||||||||||||||||
|
7 |
System pressure |
42MPa |
|||||||||||||||||
|
Axle and Tire |
|||||||||||||||||||
|
1 |
Type of main reducer |
spiral bevel gear, single stage |
|||||||||||||||||
|
2 |
Gear ratio of main reducer |
3.889 |
|||||||||||||||||
|
3 |
Type of final reducer |
Single stage planetary |
|||||||||||||||||
|
4 |
Gear of ratio of final reducer |
4.941 |
|||||||||||||||||
|
5 |
Total ratios |
23.2584 |
|||||||||||||||||
|
6 |
Size of tire |
23.1-26-12PR |
|||||||||||||||||
|
Working Device Hydraulic System |
|||||||||||||||||||
|
1 |
Model of vibratory pump |
MPV064C |
|||||||||||||||||
|
2 |
System pressure |
300(kgf/cm2) |
|||||||||||||||||
|
3 |
Model of vibratory motor |
MMF044DAAHABNNN |
|||||||||||||||||
|
Steering System |
|||||||||||||||||||
|
1 |
Type |
Middle articulated frame. Full-hydraulic Steering |
|||||||||||||||||
|
2 |
Model of steering pump |
SNP2/22 D SC06 |
|||||||||||||||||
|
3 |
Model of redirector |
BZZ1-E500C |
|||||||||||||||||
|
4 |
System pressure |
180(kgf/cm2) |
|||||||||||||||||
|
5 |
Dimension of steering cylinder |
Ф90*45*280(mm) |
|||||||||||||||||
|
Brake System |
|||||||||||||||||||
|
1 |
Type of traveling brake |
In general, traveling brake depend on static hydraulic tow of close-circuit hydraulic system Vibratory reducer with brake which control by a solenoid valve. |
|||||||||||||||||
|
2 |
Type of parking brake |
Hand brake Flexible shaft control clamp brake |
|||||||||||||||||
|
Oil Capacity |
|||||||||||||||||||
|
1 |
Fuel(diesel) |
250 (L) |
|||||||||||||||||
|
2 |
Engine lubricating oil |
15 (L) |
|||||||||||||||||
|
3 |
Oil for hydraulic system |
140 (L) |
|||||||||||||||||
|
4 |
Oil for driving axles |
24 (L) |
|||||||||||||||||
|
5 |
Oil for vibrating drum |
2X56(L) |
|||||||||||||||||
