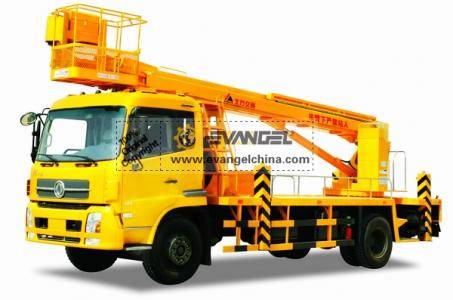

GKS-28E Aerial Working Platform


KaiFan Brand 28M Telescopic Boom (DONGFONG) Aerial Working Platform Technical Parameters

KFM5140JGK07S –GKS-28E



Working Condition

1Altitude: 0-1000m

2Temperature: -25℃--+45℃, environmental relative humidity ≤90%

3Allowed working condition: solid, stable land, the vehicle should be horizontal

4Wind force: ≤6 degree (wind speed ≤12.5m/s)



Working Range

KFM5140JGK07S Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.



Main Parameters

Bulletin No.

KFM5140JGK07S

Type

GKS-28E

External dimensionsmm

8950×2490×3950

Structure type

Four-section telescopic boom

Working Cage

Internal sizemm

1000×700×1100

Rated loadingkg

200or 2 persons

Max. Working heightmm

28000

Max. Height from groundmm

26300

Rotation angleº

Left 90 º, right 90 º

Max. Working radiusmm

14500

Working radius when doing the highest heightmm

4480

Working Boom

Lifting angleº

-12~80

Length of main boommm

7860-24700

Boom rack rotation angleº

360

Outrigger

Vertical spanmm

5000

Horizontal spanmm

4500

Traveling of vertical outrigger

650

Adjustment

Single adjustable



Chassis Introduction

Traveling

Performance

Parameters

Chassis model

DFL1140B

Persons

3

Axle base (mm)

5000

Wheel base (front/rear)mm

1880/1800

Driving mode

4×2

Front suspensionmm

1430

Rear suspensionmm

2300

Approaching angleº

20

 Departure angleº

13

Min. Turning diametermm

19000

Min. Ground clearancemm

250

Engine

Engine model

ISDe185 30

Rated powerkw/r/min

136/2500

TorqueNm/r/min

700/1200~1700

Max. Speedkm/h

90

Gas consumption per one hundred miles(diesel oil) L

28.4

Specification of the tire

10.00-20

The whole weightkg

13705

Max. Weight with whole loadingkg

13900



Equipments Introduction

1.       DONGFONG DFL1140B

2.        Working boom assembly

3.         Rotation structure assembly

4.        Body transformation assembly

5.       Extending outrigger

6.       Spare type & tool box

7.       Hydraulic system assembly

8.       Electric system assembly

9.        Safety control system

10.     Working cage assembly

11.       Safety belt

12.      Safety lift & Moving guard bar

13.    Maintenance bag & tools

14.   Safety warning & Light

15.    Air- conditioning

16.     Emergency pump device



Vehicle Information

1.          Manual Instruction

2.         Operation manual of chassis

3.          Guarantee of chassis

4.          Certification of quality of the vehicle

5.         Maintenance Manual (Operation instruction)

6.          Operating safety certification
