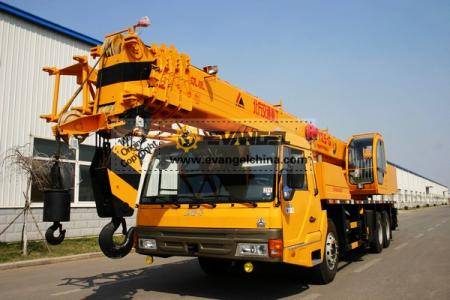

QY25G Truck Crane


KaiFan Brand 25T (WUYUE) Crane Technical Parameters

KFM5286JQZ25G – QY25G

Working Condition

1Altitude: 0-4500m

2Temperature: -25℃--+45℃

3Allowed working condition: solid, stable land, the vehicle should be horizontal

4Wind force: ≤6 degree



Working Range

“KAI FAN” Brand KFM5286JQZ25GQY25GCrane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 25t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.



 Main Parameters

Items

Unit

Value

Working Performance  Parameters

Max. Rated lifting weight

kg

25000

Max. Lifting force of the basic boom

kn.m

875

Max. Lifting force of the longest main boom

kn.m

475

Max. Height of the main boom

m

32.5

Max. Height of the vice boom

m

40.2

Max. Speed of the single rope

m/min

115

Working Speed

Extension time of the lift boom

s

115

Lifting time of the lift boom

s

79

Turning speed

r/min

02.4

Traveling Parameters

Max. Traveling speed

km/h

70

Max. Grade ability

%

26

Min. Turning radius

m

11

Min. Ground clearance

m

0.27

Approaching angle

°

16

Departure angle

°

12

Weight Parameters

The whole weight of full load

kg

28320

Load of the front axle

kg

6950

Load of the middle-rear axle

kg

21500

The whole weight

kg

28450

Dimension Parameters

External dimensionlength×width×height

mm

12613×2600×3285

Vertical span of outrigger

m

5.165

Horizontal span of outrigger

m

5.9

Length of main boom

m

10.2~32.1

Length of vice boom

m

8.1

Elevation of boom

°

-1~80

Chassis

Model

TAZ5283J

Engine model

WP10-270

Rated power/speed

kw/r/min

199/2200

Max. Torque/rotate speed

n.m/r/min

1100/1200-1600



Standard Equipments

1.         WUYUE TAZ5283J

2.         Main boom assembly

3.        Vice boom assembly

4.        Hanging hook assembly

5.        Windlass assembly

6.       Slewing system

7.        Electric system

8.        Hydraulic system

9.       Outrigger

10.     Superstructure control system

11.     Chassis control system

12.      Tool box
