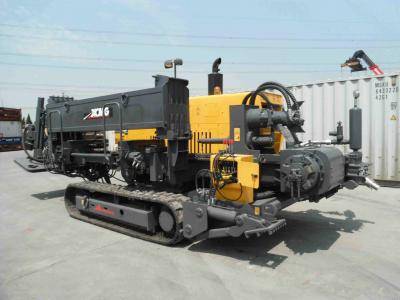

XZ280 Horizontal Directional Drill


Model

XZ160A

XZ280

Engine

Shangchai D4114ZG

Shangchai D6114ZG

Rated power

100kw/2400rpm

140kw/2300rpm

Max.pullback/thrusting

160/100KN

280/280KN

Spindle torque (max)

5000N.m

10000N.m

Spindle speed

0~145r/min

0~120r/min

Bore diameter (max)

300m

400m

Backreaming dismeter

600mm

750mm

Tubing length (single)

3m

3m

Tubing diameter

60mm

73mm

Entry angle

10~23°

10~23°

Mud flow rate (max)

160L/min

250L/min

Mud pressure (max)

100bar

80bar

Overall weight

6100kg

12500kg

Dimension (L×W×H)

5700×1820×2400mm

7208×2200×2450mm
