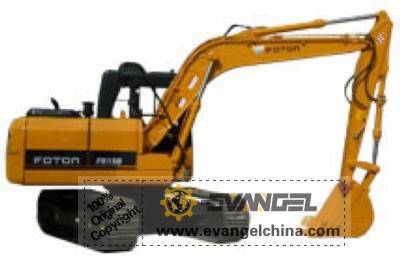

FR150 Excavator
Technical features of FR150
1. Original engine imported from Japanwith low fuel consumption, low noise, environmental protection and high efficiency;
2. A world-class hydraulic control system, the leading double-pump confluence system
3. Comprehensive monitoring and control system
4. Design and manufacture of structural components can achieve world-class level;
5. Safe and comfortable driving cab.
|
Parameter Items |
Parameter Value |
|
1.The main parameters |
|
|
Operating weight(kg) |
13850 |
|
Standard bucket capacity(m3) |
0.6 |
|
Transport dimensions (L × W × H) mm |
7700×2520 ×2850 |
|
Bucket digging force (kN) |
93.2 |
|
Stick digging force( kN) |
78.3 |
|
Maximum traction power (kN) |
110 |
|
2.Walking device |
|
|
High and low speed （km / h） |
6.2/3.8 |
|
Grade ability(°) |
30 |
|
Ground pressure (Kpa) |
43 |
|
3.Rotating device |
|
|
Rotating Speed (rpm) |
13 |
|
4.Engine |
|
|
Model |
BB-4BG1TRP ISUZU |
|
Type |
Four-cylinder, water-cooled, direct injection, overhead-valve, supercharged |
|
Rated power / speed (Kw / rpm) |
73.5/2200 |
|
Bore × stroke（mm） |
105×125 |
|
Displacement （L） |
3.922 |
|
Fuel consumption（g / kW • h） |
240 |
|
Fuel tank capacity |
247 |
|
5.Hydraulic system |
|
|
Main pump pressure （Mpa） |
31.4/34.3 |
|
Main pump flow （L / min） |
2*138 |
|
6.Operation range |
|
|
Maximum digging height（mm） |
8440 |
|
Maximum unloading height（mm） |
6000 |
|
Maximum digging depth（mm） |
5435 |
|
Maximum digging radius（mm） |
8300 |
|
Bulldozing Blade size （L x W） mm |
/ |
