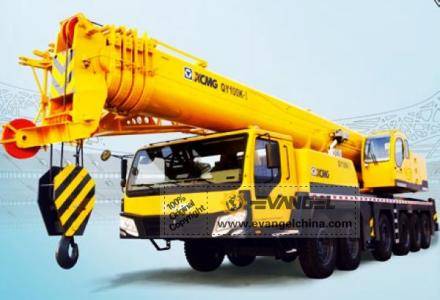

QY100K-I Truck Crane

QY100K-I Truck Crane



Feature



•The innovative jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
•The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.
•Eight patent techniques ensure the smooth, high efficiency and energy conservation of the lifting, rotation, and luffing systems.
•The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.
•Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
•The humanity design makes the cab and control cab more spacious, and easy to operate.
•Six unique manufacturing technologies ensure the high quality.
•The working condition expands twice. Newly add 5t counterweight.



Parameter



Dimension

Unit

QY100K-I

Overall length, width, height

mm

15600×3000×3850

Wheel base

mm

1420+2420+1800+1420+1505

Weight





Total weight in travel

kg

54900   58000

Axle load





Axle 1

kg

7500    7500

Axle 2

kg

7500    7500

Axle 3

kg

8300    10000

Axle 4

kg

12000    12500

Axle 5

kg

12000    12500

Axle 6

kg

7600       8000

Power





Engine rated power

kW/(r/min)

360/1800 (306/1900)

Engine rated torque

N.m/(r/min)

2200/1300 (2010/1200)

Engine rated speed

r/min

1800 (1900)

Min. ground clearance

mm

310

Travel





Approach angle

°

20

Departure angle

°

14

Braking distance (at 30km/h)

m

≤10

Max. grade ability

%

40

Min. turning diameter

m

24

Fuel consumption for 100km

L

70

Main performance

Max. rated total lifting capacity

m

100

Min. rated working radius



3

Turning radius at turntable tail





Counterweight

mm

4200

Aux. winch

mm

4590

Max. lifting torque



3450

Base boom

kN.m

3450(4m×88t)

Fully extended boom

kN.m

1950(24m×7.1t)

Fully extended boom+ jib

kN.m

1230(19.2m×6t)

Outrigger span (full extension)





Longitudinal

m

7.56

Lateral

m

7.6

Lifting height





Base boom

m

13.5

Fully extended boom

m

50.9

Fully extended boom+ jib

m

70.4

Boom length

m

13.5

Fully extended boom

m

51

Fully extended boom+ jib

m

51+18.1+4

Working speed





Jib setting angle

°

0、15、30

Boom luffing time

s

75

Boom





Boom telescoping time





Full extension

s

160

Max. swing speed

r/min

2

Outrigger extension/retraction time





Outrigger beam in extension/retraction

s

25/15

Outrigger jack in extension/retraction

s

45/25

Lifting speed (single rope, layer 4)





Main winch

m/min

105

Aux. winch

m/min

104
