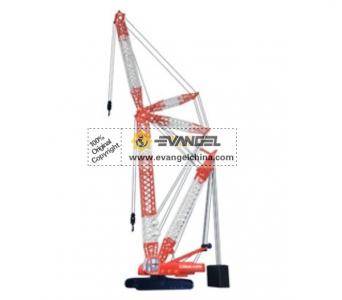

QUY350 Crawler Crane

QUY350 Crawler Crane



Features



Engine: Imported original Cummins engine, with strong power, low noise and good environmental protection. Its emission is up to non-road III emissions standard.

PLC controller: imported original Finland, which is designed specially for army industry, has strong shock resistance and anti-interference ability.

The contactless and Bus-controlled electrical control lever, which has a wide adjusting range, can guarantee excellent jogging performance. On the control lever is fitted with a latch button which can avoid inadvertent operation (because the operation of control lever will be of no use without the latch button being pressed.) Such control lever is convenient and practical.

The function of Limit-load-control enables engine in optimal working condition.

Tri-color light indicator enables lifting commander to judge the load accurately.

Equipped with winch mechanism and monitoring device on the tail of vehicle.

Function of self assembly, cylinder of power pin and design of assist mechanism make the product easier to be assembled and disassembled.

The wire ropes of main and auxiliary hoist winch adopt structure of rope fixation with pocket lock, which is convenient for assemble and dismantle. And its connection is safe and reliable.

Drum and highly-qualified rotation-resistant PFEIFER wire rope with long service life and safer lifting performance

The stretching transformation function of frame under the boom’s full working condition can achieve the narrow gauge mode that the two track’s outer width is 5m, which reduce largely the charge on disassembly & assembly department and transformation, and enhance greatly the working efficiency of wind power lifting.

Large powered traveling driven mechanism strengthened the walking ability with load and grade climbing ability with boom.

Spacious and pitch tiltable driver’s cab, which is in accordance with the ergonomics and with broad view, have increased the operation comfort.

The two operation modes, working mode and setup mode, have decreased the risk of inadvertent operation to further ensure safety.

Centralized lubrication system has reduced the maintenance work and ensured the good and reliable lubrication of the whole vehicle.

Parameter



Item

Unit

Value

Max. lifting load/ working radius/

boom length

Standard

t × m×m

350/5/18

Superlifting

t × m×m

350/5.5/30

Main boom length

Standard

m

18~84

Superlifting

m

30~84

Light-duty main boom length

Standard

m

24~102

Superlifting

m

42~120

Fixed fly jib length

m

12

Max. lifting load of fixed fly jib

t

80

Offset angle of fixed fly jib

°

10,25,40

Main boom length under

fixed fly jib operating condition

Standard

m

54~96

Superlifting

m

54~102

Luffing fly jib length

Standard

m

24~66

Superlifting

m

24~84

Max.lifting load of luffing fly jib

Standard

m

140

Superlifting

m

160

Main boom working angle under luffing fly jib operating condition

°

65、75、87

Main boom length under

luffing fly jib operating condition

Standard

m

24~60

Superlifting

m

30~84

Main boom length under

luffing fly jib operating condition

+ Max. length of fly jib

Standard

m

54+66,60+42

Superlifting

m

84+84

Speed of drum single layer rope

Main hoist on the 8th rope layer

m/min

135

Auxiliary hoist on the 7th rope layer

m/min

120

Main luffing gear on the 7th rope layer

m/min

50×2

Luffing jib derricking on 7th rope layer

m/min

120

Superlifting derricking on 7th rope layer

m/min

120

Max. slewing speed

rpm

1.0

Max traveling speed

km/h

1.2

Gradeability

20

Ground Pressure

MPa

0.115

With deadweight of basic boom

t

280

Max. weight of single components

With mast, winch

t

61 With mast, winch

without mast, winch

t

43 without mast, winch

engine

model

QSM11

Power/rotational speed

kW/rpm

298/2100

Torque/rotational speed

Nm.rpm

1898/1400


Main configuration

No.

Item

Supplier

Additional

1

Engine

Cummins America

Imported

2

Main pump

Linde

Imported

3

Main valve

Bucher

Imported

4

Traveling reducer

Fusheng of Tai Shan

5

Traveling motor

parker

Imported

6

Gear winch reducer

Fusheng of Tai Shan

7

Gear winch motor

Linde

Imported

8

Gear winch balance valve

Fusheng of Tai Shan

9

Hoisting winch motor

Linde

Imported

10

Hoisting winch reducer

Fusheng of Tai Shan

11

Hoisting winch balance valve

Linde

Imported

12

Slewing reducer

Fusheng of Tai Shan

13

Slewing motor

Shanghai Electricity

14

Slewing support

DV-B of German

Options (Imported)

Xuzhou Rothe Erde

Standard configuration

15

Wire rope

Shanghai Pfeifer

Imported

16

Centralized lubrication

German BAKE

Imported

17

Boom Material

Changsha Hualing

Standard configuration

Mannesmann

Options (Imported)
