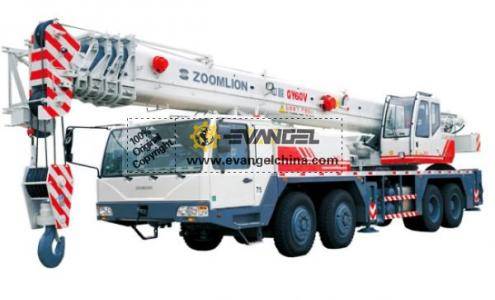

QY60V532 Truck Crane

QY60V532 Truck Crane



Features



The QY60V532 truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performance product integrating our company many years' manufacturing experience with advanced technologies. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.

The truck crane, with spacious cab and luxurious equipments, adopts full slewing system, telescopic boom, electro-hydraulic proportional control system and self-made full-width special purpose chassis with four axles. 8×4 drive and hydraulic power steering mechanism provide the crane with good driving performance and flexible steering.

The system with latest load feedback electro-hydraulic operated proportional directional control valve and double pump is adopted to make full use of the working capacity of each actuating mechanism. The control type of 2 levers, which are flexible and stepless speed regulated, can carry out any of the 2 crane movements “Spool up main / auxiliary winch”, “Reel off main / auxiliary winch”, “Telescope boom in / out”, “Derrick”, and “Slew” simultaneously. All that not only provides the crane with stable and reliable simultaneous movements but also greatly improves crane's working efficiency. The safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage. The control system adopts modern data bus technology and has fault self-diagnosis function. LCD can display the pressure on fault point in real time and provide the troubleshooting methods.

The safety devices such as load moment limiter, and the complete lighting system equipped in the crane ensure your safety during operation and are convenient for night work.

This crane has a novel style which makes it beautiful in figure, in form and in color



Parameter



Item

Value

Remarks

Working performance specifications

Max. rated lifting capacitykg

60000

Max. load moment of basic boom

kN.m

2132

Max. load moment of max. boom lengthkN.m

974

Max. lifting height of basic boom m

12.1

Max. lifting height of boom m

43.1

Deformation of the boom is not taken into consideration.

Max. lifting height of jib m

59.3

Working speed

Max. hoist rope speed (main winch)

m/min

120

At 4th layer

Max. hoist rope speed(auxiliary winch) m/min

72

At 2nd layer

Boom derricking times

53

Boom extending times

102

Slewing speed r/min

0~1.8

Traveling specifications

Max. traveling speed km/h

73

Max. gradeability %

34.7

Min. turning diameter m

24

Min. ground clearance mm

260

Limits for exhaust pollutants and smoke

Meet with related standards

GB3847-2005 GB17691-2005 (National stage III)

Oil consumption per hundred kilometersL

55

Weight specifications

Deadweight in traveling condition kg

43730

Complete vehicle kerb mass kg

43600

Front axle load kg

17600

Rear axle loadkg

26000

Dimension specifications

Overall dimensions (L×W×H)mm

13930×2750×3800

Longitudinal distance between outriggersm

5.95

Transversal distance between outriggers m

(Fully extended outriggers: 6.9m; half extended outriggers: 4.8m)

Boom length m

11.4~43.0

Boom angle°

-2~80

Jib length m

9.5 、16

Offset°

0 、 30
