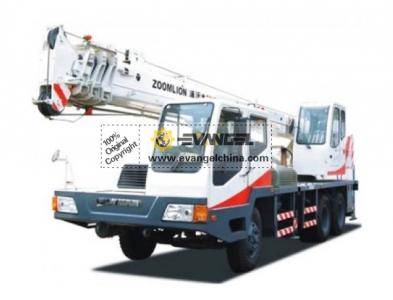

QY12D431 Truck Crane

QY12D431 Truck Crane



Features



The QY12D431 truck crane, which is developed independently to adapt to the market demands, is a new-generation and high-performance product integrating our company many years’ manufacturing experience with advanced technologies. Its performances such as lifting height, boom length, working speed and lifting capacity have achieved advanced international level.

The truck crane, with spacious cabandcompact decoration, adopts full slewing system, 4-section telescopic boom sections, unique manual proportional control system and self-made semi-width special purpose chassis with three axles. 6×4 drive provides the crane with good driving performance and flexible steering. The engine complies with the National Stage III emission standard.

The system with latest load feedback hydraulic operated proportional directional control valve and quadruple gear pump, and the safety devices fitted in hydraulic system, such as relief valve, balance valve, hydraulic lock and brake valve etc., prevents the oil line from overloading and the accidents caused by oil pipe breakage and makes full use of the working capacity of each actuating mechanism. Thus the reliability and safety of the crane are increased.



Parameter



Item

Value

Remarks

Working performance specification

Max. rated total lifting capacity kg

12000

Max. load moment of basic boom kN.m

465.5

Max. load moment with max. main boom length kN.m

258.7

Max. lifting height of main boom m

29.8

Deformation of boom is not taken into consideration.

Max. lifting height of fly jib m

35.8

Working speed

Max. speed of single rope on main winch m/min

98

The 4th layer of drum

Max. speed of single rope onauxiliary winch m/min

87

Telescopic time of boom s

53.5

Derricking time of boom s

38

Slewing speed r/min

0~3

Traveling specification

Max. traveling speed km/h

78

Max. gradeability %

27.5

Min. turning circle diameter m

18

Min. ground clearance mm

260

Limits for exhaust pollutants and smoke

Comply with related standards

GB3847-2005

GB17691-2005

(Stage III)

Oil consumption per hundred kilometers L

28

Mass specification

Deadweight of crane in traveling condition kg

18030

Complete vehicle kerb mass kg

17900

Front axle load kg

5120

Rear axle load kg

12910

Dimension specification

Overall dimensions(L×W×H)mm

11000×2500×3180

Base on outriggers m

4.63

Distance between outriggers m

5.2

Main boom length m

9.2~29.4

Main boom angle °

-2~80

Fly jib length m

6

Offset angle of fly jib °

0

Chassis

Model

ZLJ5241

Class

II

Engine

Model

WP6.210

Rated power kW/r/min

155/2300

Max. output torque N.m/r/min

750 /1400~1500
